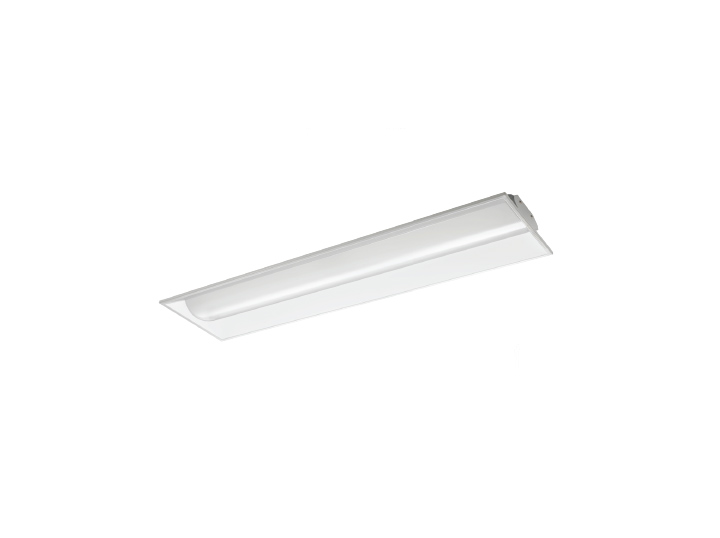

Wing II Panel Light

Submit an enquiry

FEATURES

Wing ll is an aesthetically appealing, value driven center lens troffer with an extremely shallow depth perfect for ceilings with tight plenum spaces. It is an elegant high-class indoor lighting. The outer frames are made of Cold-rolled Steel with Durable White Powder Coat Finish. The lighting source is LED. The lighting design and simple appearance, deluxe and high-class, with good lighting effect. LED panel lamp design is unique, the light passes through the high transmittance of light guide plate after the formation of a uniform plane light effect, good uniformity of illuminance, light and soft, comfortable and also bright, can effectively relieve eye fatigue.

WING II

Submit an enquiry
Description:
HOUSING
Body Manufactured in Cold-rolled Steel with Durable White Powder Coat Finish
DIFFUSER High Transmission PMMA Opal in Arc Shape
COLOR AVAILABLE
White (other colors available on request)
LIFESPAN
 >50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)
REFLECTOR
 Aluminum Reflector
VOLTAGE AC220-240V
WORKING TEMPERATURE -40C° ~ +50C°
UGR <16
LUMINOUS EFFICACY (lm/W) 100
MacAdam <3
Technical Specifications:

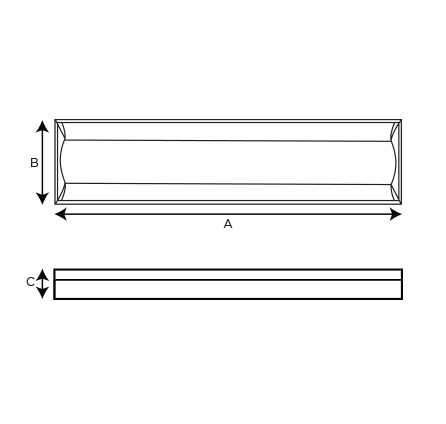

Item Code PowerCCTLumenDimensions
PXR214536 36W 3000K, 4000K, 6000K 3600lm A1196 x B296 x C70 mm
PXR214538 38W 3000K, 4000K, 6000K 3800lm A1196 x B296 x C70 mm
PXR214540 40W 3000K, 4000K, 6000K 4000lm A1196 x B296 x C70 mm
