WING

FEATURES

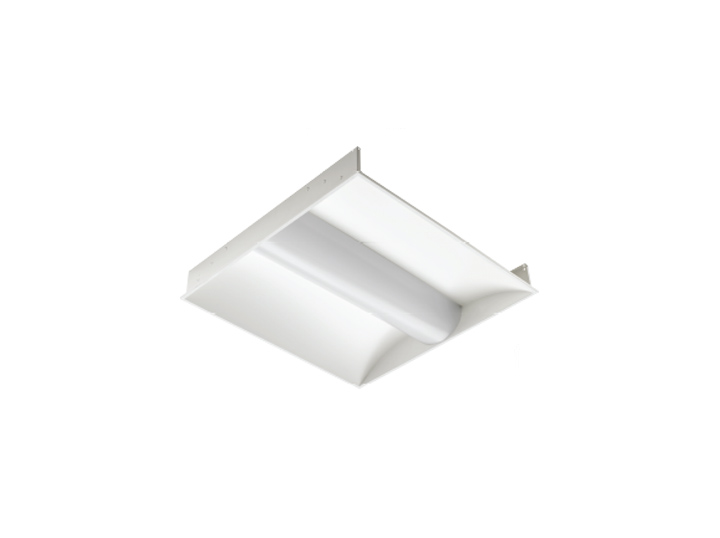

Wing is an aesthetically appealing, value driven center lens troffer with an extremely shallow depth perfect for ceilings with tight plenum spaces.It is an elegant high-class indoor lighting. The outer frames are made of Cold-rolled Steel with Durable White Powder Coat Finish. The lighting source is LED. The lighting design and simple appearance, deluxe and high-class, with good lighting effect.LED panel lamp design is unique, the light passes through the high transmittance of light guide plate after the formation of a uniform plane light effect, good uniformity of illuminance, light and soft, comfortable and also bright, can effectively relieve eye fatigue.

Description:
HOUSING
Body Manufactured in Cold-rolled Steel with Durable White Powder Coat Finish
DIFFUSER Single PMMA Opal Diffuser in Arc Shape.
COLOR AVAILABLE
White (other colors available on request)
LIFESPAN
>50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)
REFLECTOR
Aluminum Reflector
VOLTAGE AC220-240V
WORKING TEMPERATURE -40C° ~ +50C°
UGR <16
LUMINOUS EFFICACY (lm/W) 120
MacAdam <3
Technical Specifications:

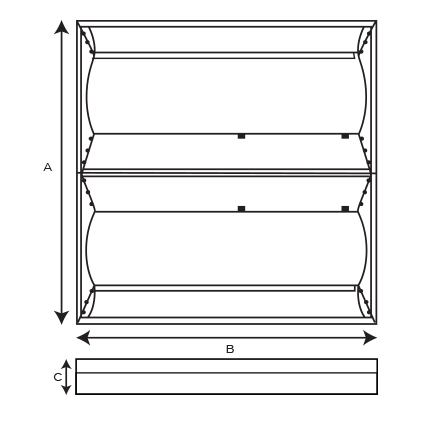

Item Code PowerCCT LumenDimensions
PXR213536 36W 3000K, 4000K, 6000K 4320lm A596 x B596 x C85 mm
PXR213538 38W 3000K, 4000K, 6000K 4560lm A596 x B596 x C85 mm
PXR213540 40W 3000K, 4000K, 6000K 4800lm
A595 x B595 x C85 mm
