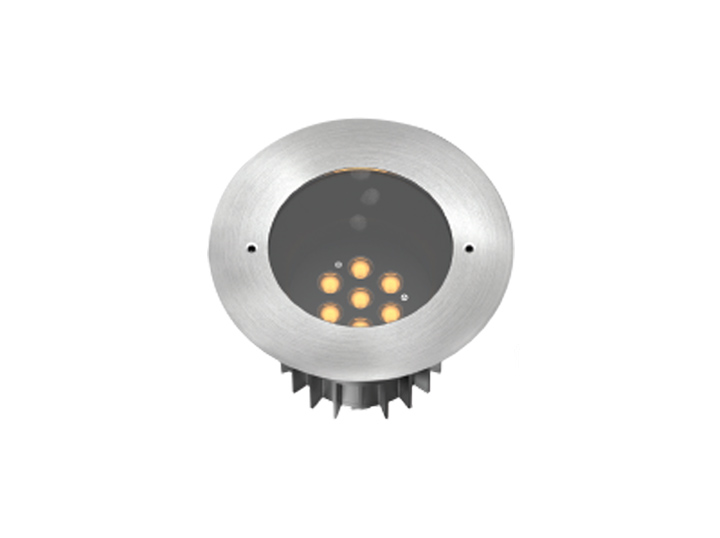

Valir Up Light

FEATURES

Valir Luminaire for floor/ground and ceiling installation, fixed, single adjustable versions for different applications, lighting head can be mechanically adjusted without opening the luminaire, high level of flexibility in terms of lighting control, very low glare rating with the deep recessed lighting head, die-cast aluminum body, 316L SS outer trim, 5mm thick tempered glass, very low thermal build-up at the diffuser end, integrated driver, optional versions available with frosted diffuser and 24VDC models. Highly resistant in marine environment

Description:
HOUSING
Die-cast aluminum, AISI 316 stainless steel trim, and screws.
DIFFUSER Tempered Safety Glass
COLOR AVAILABLE Black, Stainless Steel, and Light Grey
LIFESPAN
100,000 Hours (L90 B50)
REFLECTOR High-purity anodized aluminum
VOLTAGE AC100~240V/DC24V 50-60 HZ
WORKING TEMPERATURE40C° ~ +55C°
UGR <16~21
LUMINOUS EFFICACY (lm/W) 80
MacAdam <3
Accessories Polycarbonate Recessed Box
Technical Specifications:

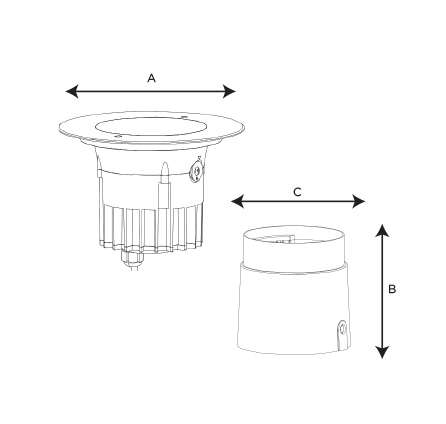

Item Code PowerLamp CCTLumen DIMENSIONS
UPXR658812 12W LED 3000K, 4000K, 6000K 960lm A220 X B190 X C174 mm
UPXR658818 18W LED 3000K, 4000K, 6000K 1440lm A220 X B190 X C174 mm
UPXR658824 24W LED 3000K, 4000K, 6000K 1920lm A220 X B190 X C174 mm
UPXR658830 30W LED 3000K, 4000K, 6000K 2400lm A220 X B190 X C174 mm
