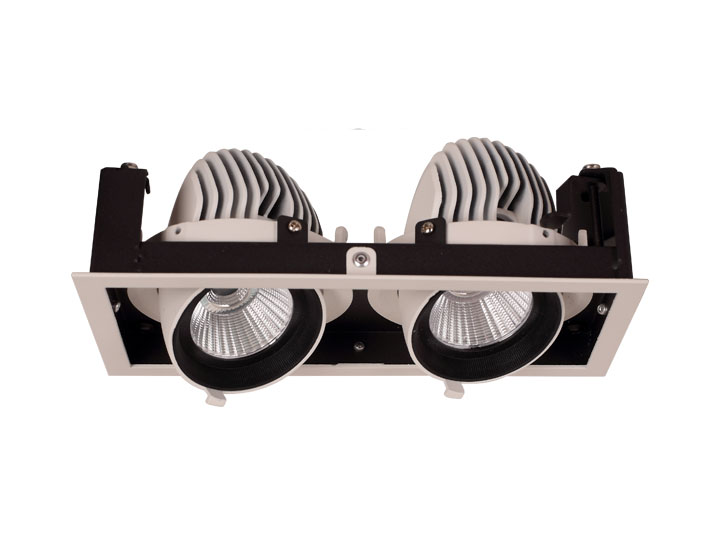

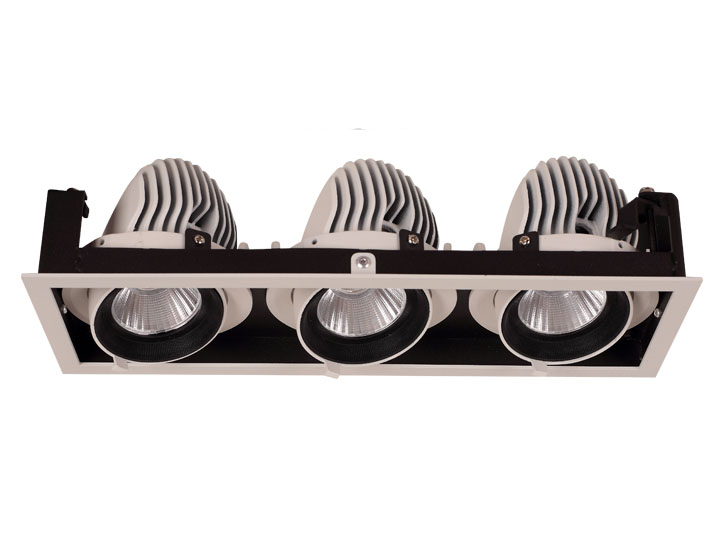

Toppe III LED Down Light

Submit an enquiry

FEATURES

Attractive downlight for prestigious lighting of offices, banks, hotels, restaurants, corridors, foyers, sales, exhibition and conference rooms, as well as residential areas. It is well integrated LED chip and dimmable Phase cut-off or DALI driver.

TOPPE III

Submit an enquiry
Description:
HOUSING
Luminaire Body of die-cast Aluminum, White, powder-coated. Luminaire body and Heat Sink form a Compact Unit
DIFFUSER Clear Tempered Glass
COLOR AVAILABLE White
LIFESPAN
 >50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)
REFLECTOR
 Aluminum reflector
VOLTAGE AC100-240V
WORKING TEMPERATURE -40C° ~ +50C°
UGR <22
LUMINOUS EFFICACY (lm/W) 120
MacAdam <3
Technical Specifications:

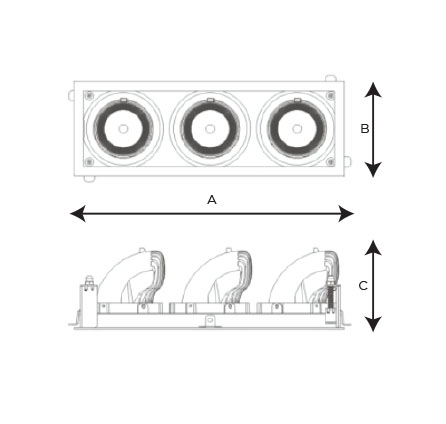

Item Code PowerLamp CCTLumen DIMENSIONS
GDXR2041115 1X15W LED 3000K, 4000K, 6000K 1800lm A110 X B110 X C111 mm
GDXR2041120
 1X20W LED 3000K, 4000K, 6000K 2400lm A175 X B175 X C139 mm
GDXR2041215
 2X15W LED 3000K, 4000K, 6000K 3600lm A200 X B100 X C86 mm
GDXR2041220
 2X20W LED 3000K, 4000K, 6000K 4800lm A350 X B175 X C139 mm
GDXR2041315
 3X15W LED 3000K, 4000K, 6000K 5400lm A280 X B100 X C86 mm
GDXR2041320
 3X20W LED 3000K, 4000K, 6000K 7200lm A500 X B175 X C139 mm
