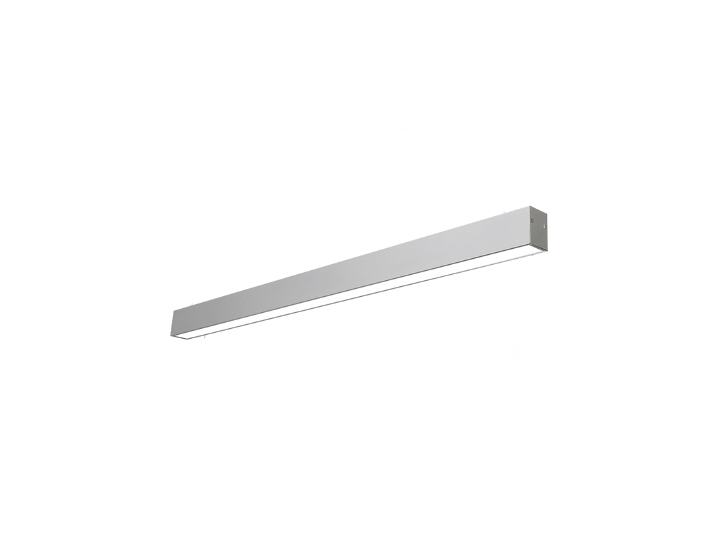

Teton II Linear Light

Submit an enquiry

FEATURES

Teton II Aluminum profiles/channel is made of sturdy anodized or powder-coated aluminum metal and has a specific design to protect LED strip and create softer lighting effect. Aluminum profile/channel is a great housing and excellent heat sink for flexible LED strips. The profiles cover a wide range of ceiling application like Hotels, Supermarkets, Offices, Exhibitions and workstations, or any other visible installations where the strips lighting is exposed. The profiles are supported by snap on covers in Clear, Opal matt and Frosted diffusers (other colors avilable on request)

TETON II

Submit an enquiry
Description:
HOUSING High Pure Extruded Aluminum, Anodized
DIFFUSER
Polycarbonate/PMMA Opal Diffuser Specially for LED
COLOR AVAILABLE White, Black, Silver (other color available upon request)
LIFESPAN >50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)
REFLECTOR Aluminum Reflector
VOLTAGE AC200-240V
WORKING TEMPERATURE -40C° ~ +50C°
UGR < 22
Luminous Efficacy (lm/W) 125
MacAdam <3
Accessories Surface Mounted, Suspended, Recessed
Technical Specifications:

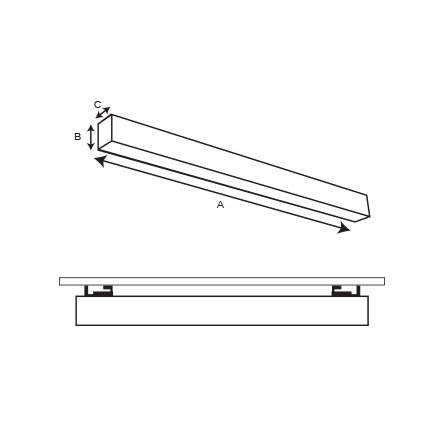

Item Code PowerLamp CCTLumen DIMENSIONS
PDXR2630-WH 30W LED 3000K, 4000K, 6000K 3750lm A1100 X B60 X C43 mm
PDXR2635-WH 35W LED 3000K, 4000K, 6000K 4375lm A1100 X B60 X C43 mm
PDXR2640-WH 40W LED 3000K, 4000K, 6000K 5000lm A1100 X B60 X C43 mm
PDXR2660-WH 60W LED 3000K, 4000K, 6000K 7500lm A1650 X B60 X C43 mm
PDXR2680-WH 80W LED 3000K, 4000K, 6000K 10000lm A2200 X B60 X C43 mm
