Stepy IV Step Light

Submit an enquiry

FEATURES

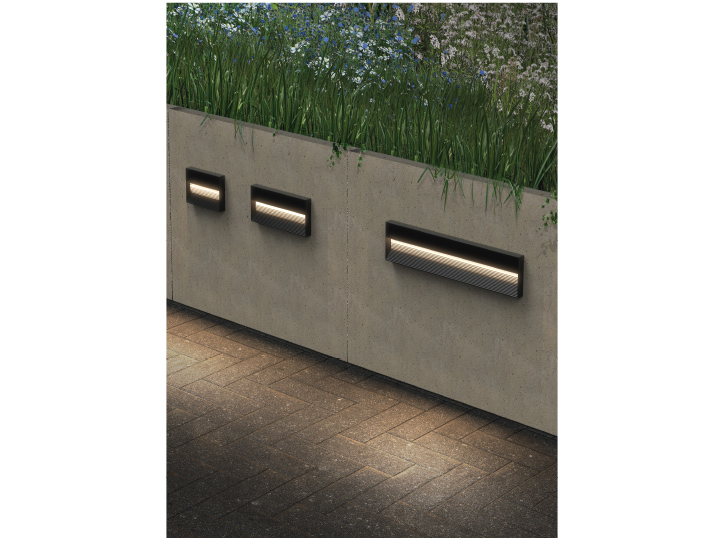

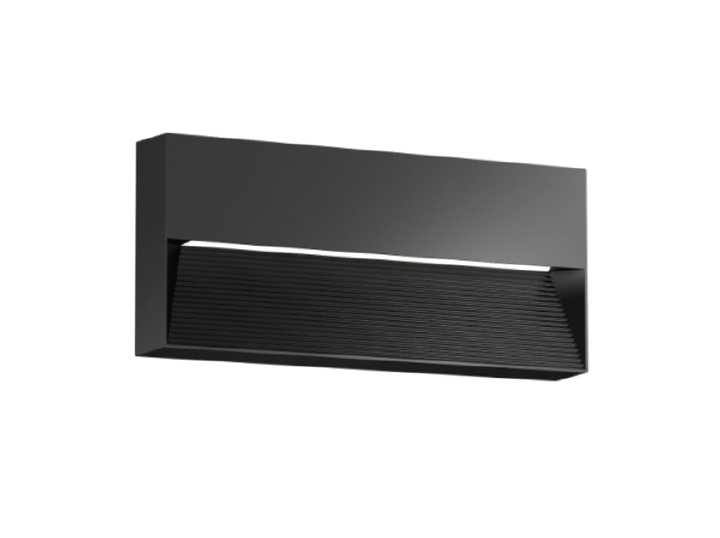

The surface mounted step light features a slim line, cast aluminum body and cable gland for easy installation made of aluminum and polycarbonate, it has IP65 protection to guarantee its use outdoors. trim features a special chromate process before a polyester powder coated finish is applied, for extended wear in harsh external environments. it is a surface-mounted LED step light that stands out for its extremely fine design.

STEPY IV

Submit an enquiry
Description:
HOUSING
Die-cast Aluminum.
DIFFUSER Glass
COLOR AVAILABLE Black/Grey
LIFESPAN
 100,000 Hours (L90 B50)
REFLECTOR Aluminum Reflector
VOLTAGE AC220~240V
WORKING TEMPERATURE -40C° ~ +55C°
UGR <15
LUMINOUS EFFICACY (lm/W) 120
MacAdam <3
Technical Specifications:

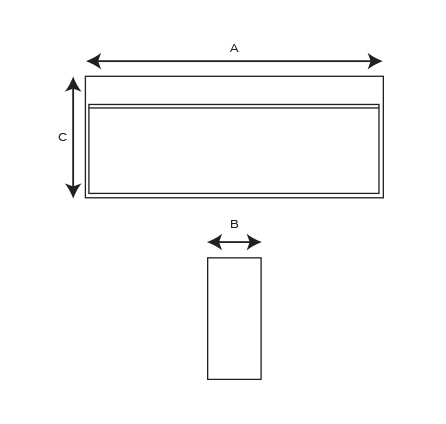

Item Code PowerLamp CCTLumen DIMENSIONS
STXR355010 10W LED 3000K, 4000K, 6000K 1200lm A250 X B114 X C35 mm
STXR355020 20W LED 3000K, 4000K, 6000K 2400lm A250 X B114 X C35 mm
