Staku Down Light

Submit an enquiry

Features

This innovative deep reflector downlight combines high-lumen efficiency SMD LED technology with durable ADC12 aluminum for excellent thermal management. Featuring three interchangeable covers—honeycomb, tri-reflector, and adapter ring—it offers versatile applications and easy installation. The low-glare design (UGR<19) ensures optimal lighting with an IP54-rated front for added durability. Equipped with an external flicker-free driver, it supports multiple dimming options (Triac, DALI, 0-10V, Push dim). Ideal for offices, shops, hotels, and public areas such as lobbies, stairways, and corridors, this downlight delivers reliable performance with stylish adaptability.

STAKU

Submit an enquiry
Description:
HOUSING
Luminaire Body of die-cast aluminum, white, powder-coated. Luminaire body and Heat Sink form a Compact Unit
DIFFUSER
Polycarbonate Diffuser
COLOR AVAILABLE White
LIFESPAN
50,000 Hours (L90 B10)
REFLECTOR
Aluminum Reflector
VOLTAGE
AC200~240V
WORKING TEMPERATURE -20C° ~ +40C
UGR <19
LUMINOUS EFFICACY (lm/W) 100
MacAdam <3
Technical Specifications:

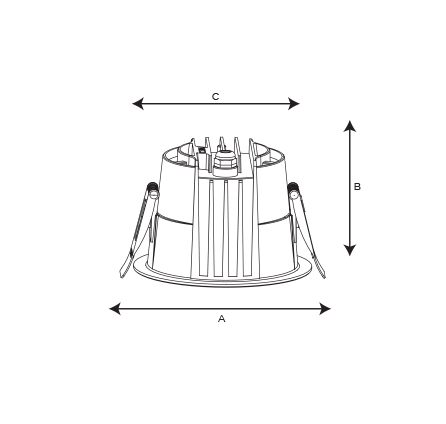

Item Code PowerLamp CCTLumen DIMENSIONS
DXR176010
 10W LED 3000K, 4000K, 6000K 1000lm A110 X B84 X C100 mm
DXR176018 18W LED 3000K, 4000K, 6000K 1800lm A135 X B96 X C125 mm
DXR176025 25W LED 3000K, 4000K, 6000K 2500lm A135 X B96 X C125 mm
DXR176035 35W LED 3000K, 4000K, 6000K 3500lm A160 X B117 X C155 mm
DXR176042 42W LED 3000K, 4000K, 6000K 4200lm A186 X B128 X C175 mm
