SONIC

FEATURES

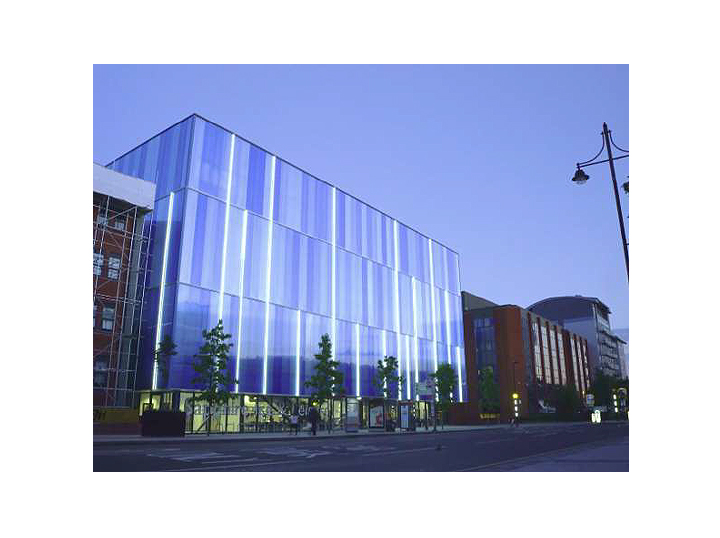

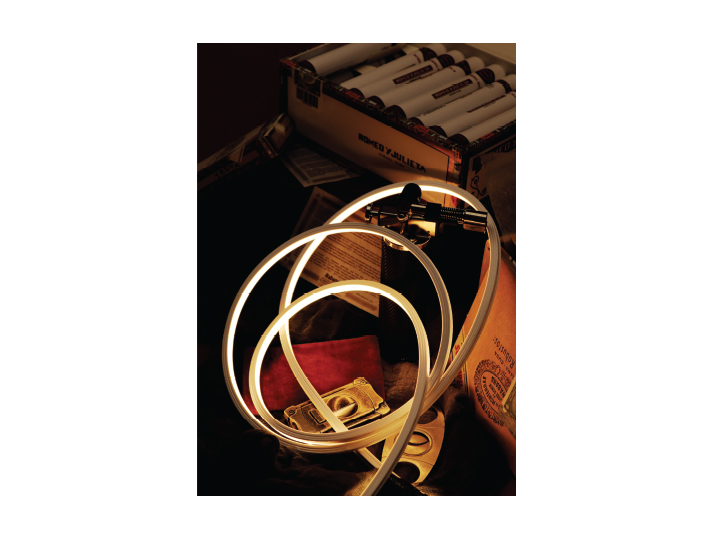

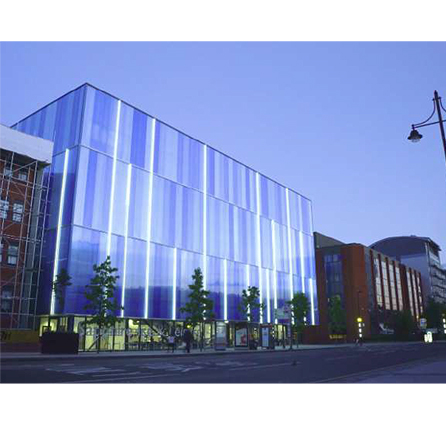

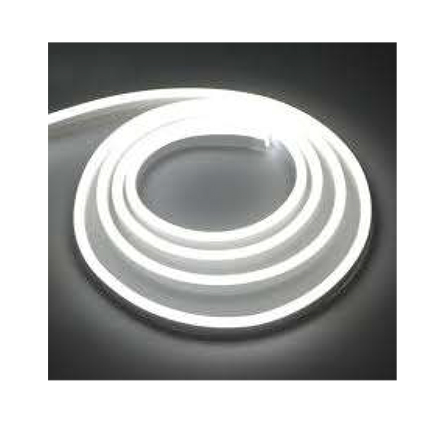

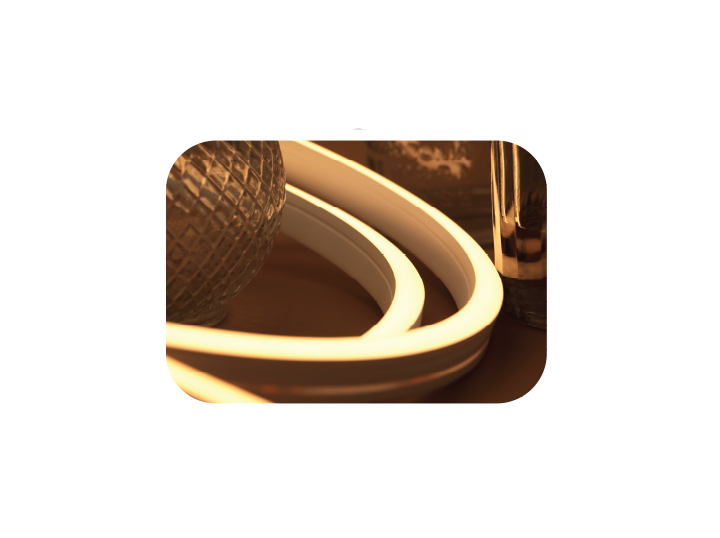

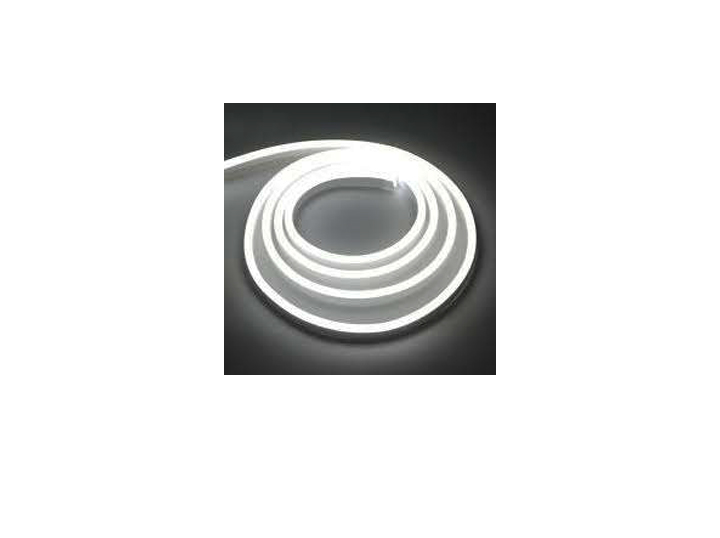

Sonic is IP68 flexible neon dot free linear. It’s UV resistance, chemical stability against urban gases, marine enviroment and protection against abrasion. Avilable in vertical and horizontal bending, excellent solution for indoor/outdoor organic facade accent lighting or decorative applications requiring IP68 ingress.

Description:

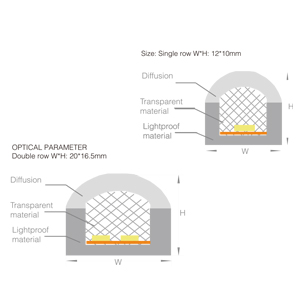

HOUSING
Anti-yellowing & Heat Resisting Silicone Glue Extrusion Chemical Resistance Acid
DIFFUSER Milky White Silicone
COLOR AVAILABLE
Milky
LIFESPAN
>50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)
REFLECTOR
Aluminum Reflector
VOLTAGE 24DC (23.5Vmin,24.5Vmax)
WORKING TEMPERATURE -40C° ~ +50C°
UGR <19
LUMINOUS EFFICACY (lm/W) 80
MacAdam <2
Silicone and salt mist proof
Technical Specifications:
Item Code PowerLamp CCTLumen DIMENSIONS
FNXRTV4.8 4.8W LED 3000K, 4000K, 6000K 384lm 15 X 16 mm
FNXRTV10 10W LED 3000K, 4000K, 6000K 800lm 15 X 16 mm
FNXRTV12 12W LED 3000K, 4000K, 6000K 960lm 15 X 16 mm
FNXRTV14 14W LED 3000K, 4000K, 6000K 1120lm 15 X 16 mm
