FEATURES

LED panel light is an elegant high-class indoor lighting. The outer frames are made of aluminum alloy by anodic oxidation. The lighting source is LED. The lighting design and simple appearance, deluxe and high-class, with good lighting effect. LED panel lamp design is unique, the light passes through the high transmittance of light guide plate after the formation of a uniform plane light effect, good uniformity of illuminance, light and soft, comfortable and also bright, can effectively relieve eye fatigue.

SOFT

Submit an enquiry
-40C° ~ +50C°
Description:
HOUSING Aluminum Sheet, Powder Coating, Luminaire Frame made of Extruded Aluminum, Powder-Coated
DIFFUSER Opal PMMA Diffuser UV-Stability, Non-Yellowing Material. Designed for Anti-Glaring.
COLOR AVAILABLE White
LIFESPAN
 >50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)
REFLECTOR
 Aluminum Reflector
VOLTAGE AC220-240V
WORKING TEMPERATURE
UGR <19
LUMINOUS EFFICACY (lm/W) 120
MacAdam <3

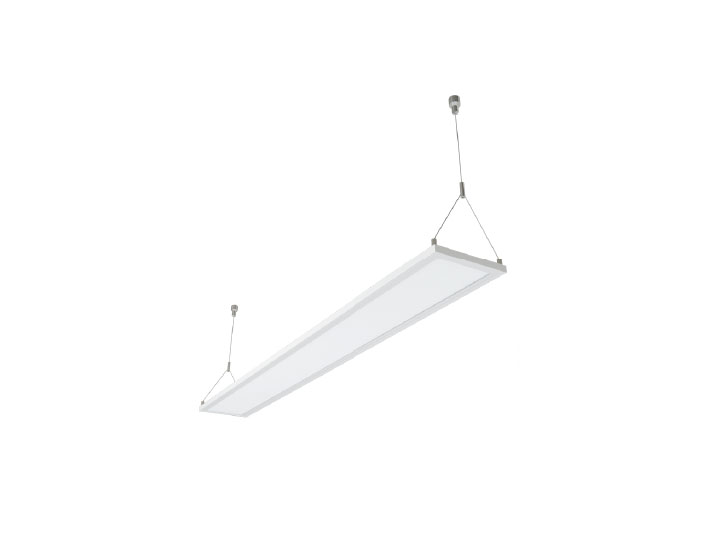

AccessoriesPushing frame, Surface frame, Suspension kit, Clips.
Technical Specifications:

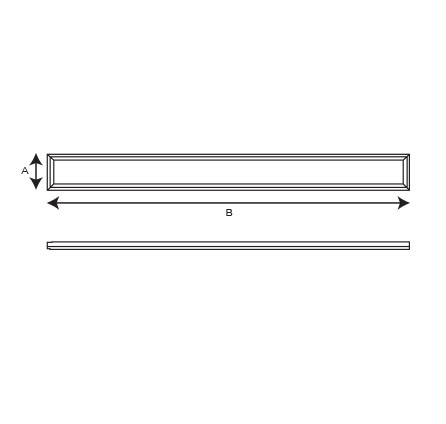

Item Code Power CCTLumen Dimensions
PXR215520 20W 3000K, 4000K, 6000K 2400lm A150 X B1200 mm
PXR215524 24W 3000K, 4000K, 6000K 2880lm A150 X B1200 mm
PXR215530 30W 3000K, 4000K, 6000K 3600lm A150 X B1200 mm
