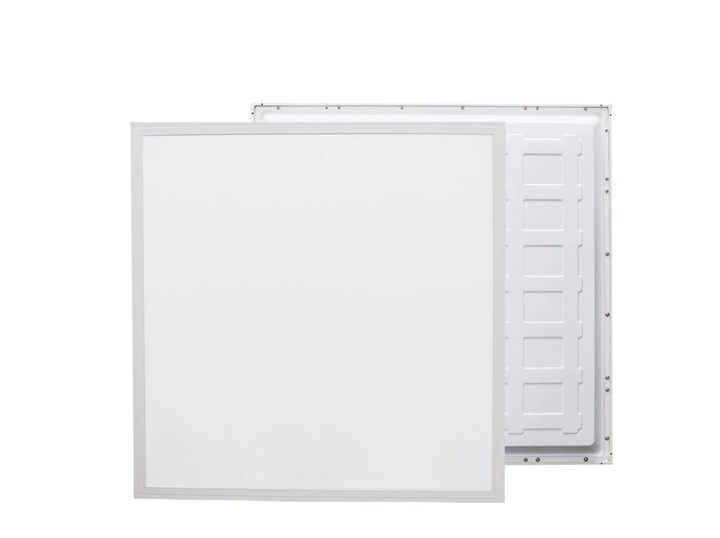

Sierra Panel Light

Submit an enquiry

FEATURES

LED backlit panel adopts high lumen SMD LED with up to 80% energy saving compared to standard CFL. Long a lifetime of
50,000 hours. The top branded driver comes with Triac dim, 0-10V dim, and DALI dim, it has a perfect dimming range
and shares great compatibility with worldwide famous brand dimmers.120° wide beam angle.

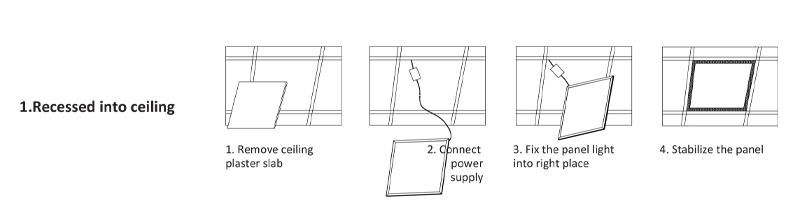

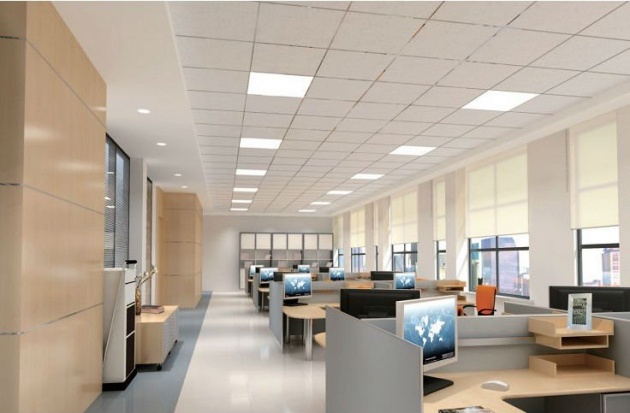

It fits seamlessly into any workplace. It is available in various installation ways: embedded into the ceiling, suspended with
hanging wires, surface mounted in a concrete ceiling by using a surface mounting frame.

SIERRA

Submit an enquiry
Description:
HOUSING
Aluminum Sheet, Powder Coating, Luminaire Frame made of Extruded Aluminum, Powder-Coated
DIFFUSER Opal PMMA Diffuser UV-Stability, Non-Yellowing Material. Designed for Anti-Glaring.
COLOR AVAILABLE White
LIFESPAN
 >50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)
REFLECTOR
 Aluminum Reflector
VOLTAGE AC200-240V
WORKING TEMPERATURE-40C° ~ +50C°
UGR <19
LUMINOUS EFFICACY (lm/W) 120
MacAdam <3
Technical Specifications:

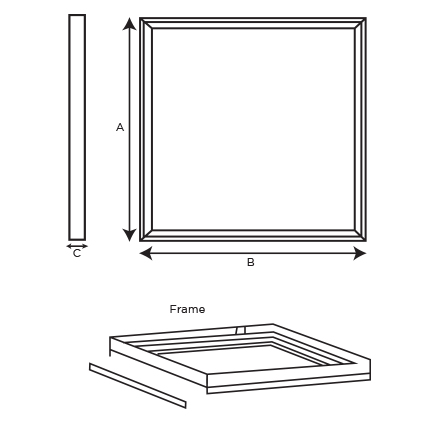

Item Code PowerLamp CCTLumen DIMENSIONS
PXR211230 30W LED 3000K, 4000K, 6000K 3600lm A595 x B595 x C30mm
PXR211236 36W LED 3000K, 4000K, 6000K 4320lm A595 x B595 x C30mm
PXR211240 40W LED 3000K, 4000K, 6000K 4800lm A595 x B595 x C30mm
PXR211245 45W LED 3000K, 4000K, 6000K 5400lm A595 x B595 x C30mm
PXR211248 48W LED 3000K, 4000K, 6000K 5760lm A595 x B595 x C30mm
