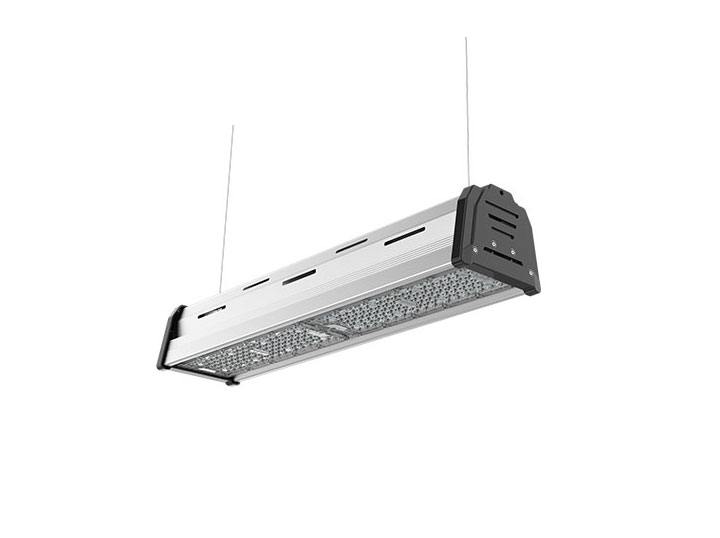

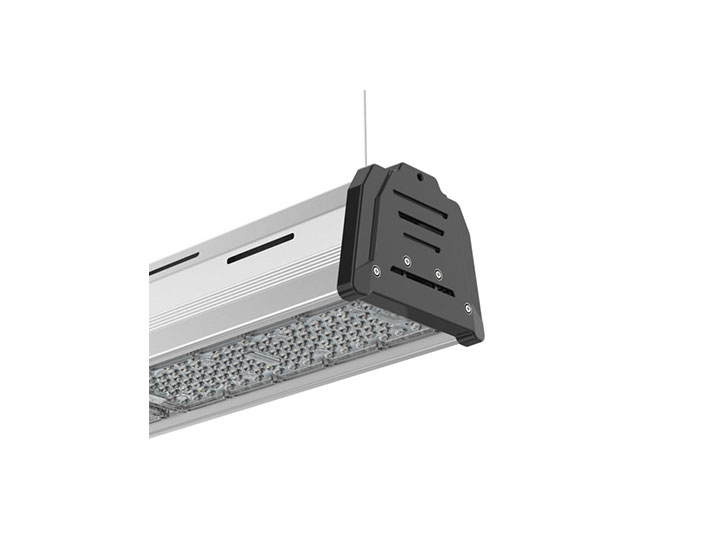

Shell LED High Bay

Submit an enquiry

FEATURES

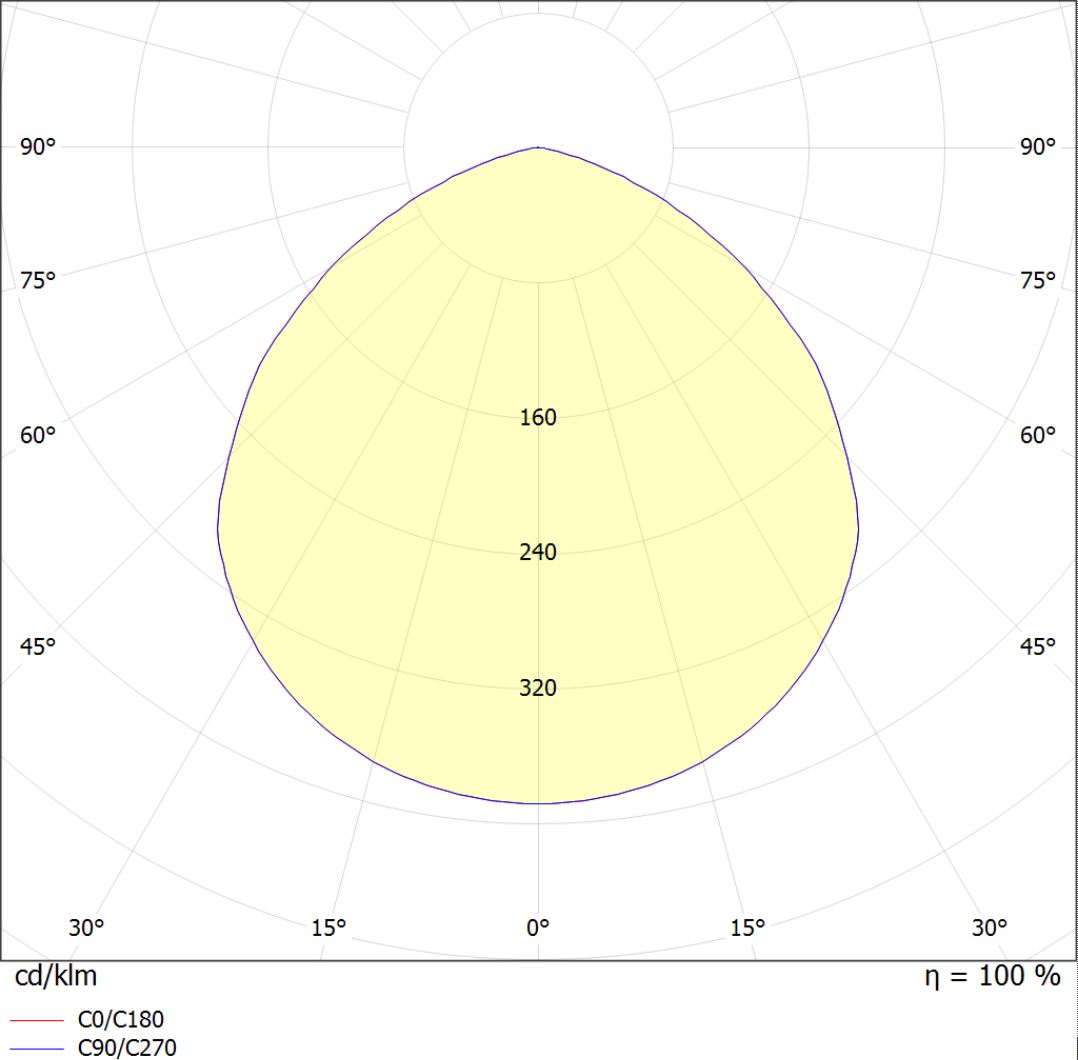

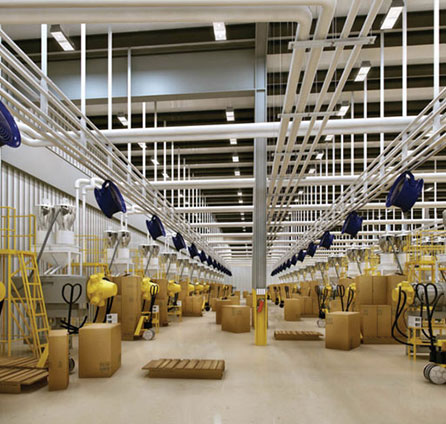

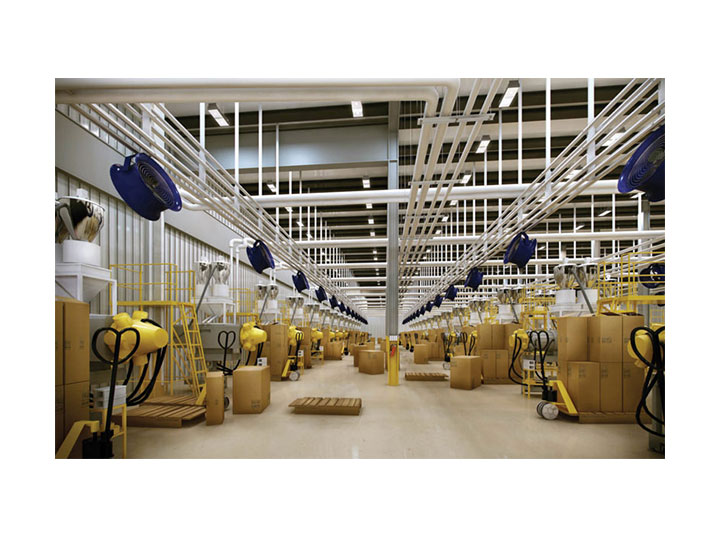

Shell LED High Bay is an energy efficient bay light available from 80W to 300W. Due to its 140lm/W and 5 different optics, it’s a perfect fit for warehouse, high halls, loading areas, etc. The 40°x130°optic, especially, allows Starline to optimize the most uniform lighting distribution in long and narrow high-rack buildings.

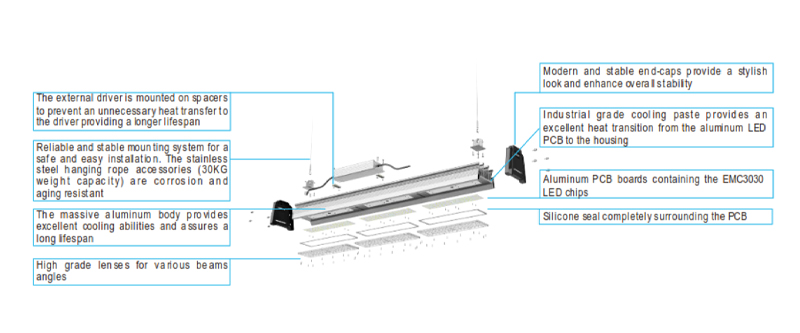

Customers can benefit long lifespan of 5 years, as it has robust extrusive pure AL6063 housing to assure superior cooling ability. Additionally, highly engineered PC lens could be replaced one from another, which could slim your SKU. In all, this high bay could help create safer and more productive warehouses.

It is available with 1-10V dimming and DALI, Emergency Kit and Microwave motion sensor or PIR sensor based on the client requirement.

SHELL

Submit an enquiry
Description:
HOUSING
Al6063 Aluminum Heat Sink
DIFFUSER PMMA
COLOR AVAILABLE Black, Grey
LIFESPAN
 >50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)
REFLECTOR
 Aluminum Reflector
VOLTAGE  AC100-277V
WORKING TEMPERATURE -40C° ~ +50C°
UGR <23
LUMINOUS EFFICACY (lm/W) 130
MacAdam <3
Technical Specifications:

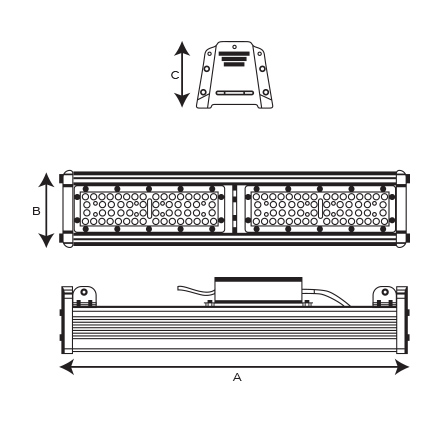

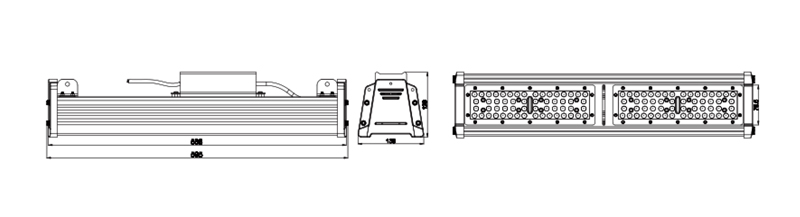

Item Code PowerLamp CCTLumen DIMENSIONS
IDXR2965100 100W LED 3000K, 4000K, 6000K 13000lm A590 X B130 X C125 mm
IDXR2965120 120W LED 3000K, 4000K, 6000K 15600lm A590 X B130 X C125 mm
IDXR2965150 150W LED 3000K, 4000K, 6000K 19500lm A880 X B130 X C125 mm
IDXR2965180 180W LED 3000K, 4000K, 6000K 23400lm A880 X B130 X C125 mm
IDXR2965200 200W LED 3000K, 4000K, 6000K 26000lm A1170 X B130 X C125 mm
IDXR2965240 240W LED 3000K, 4000K, 6000K 31200lm A1170 X B130 X C125 mm
IDXR2965400 400W LED 3000K, 4000K, 6000K 52000lm A1170 X B260 X C125 mm
