Santy Street Light

Submit an enquiry

FEATURES

SANTY Street Light fitting for the lighting of roads and cycle-pedestrian paths. Of simple and functional design, it is available in standard version fitted with a virtual midnight self-learning system with possibility of selection among pre-defined programs of power reduction, SANTY guarantees the possibility of optimizing the quantity of light according to project requirements and operating mode. Pressing the screws, that guarantee the tightness of the product, the cover on which the LED modules are attached is released. The finish is accessible in the RAL colors requested by client.

SANTY

Submit an enquiry
Description:
HOUSING Die-cast aluminum
DIFFUSER Polycorbonate Lense with Tempered Glass
COLOR AVAILABLE Silver & Grey
LIFESPAN 100,000 Hours (L90 B50)
REFLECTOR Aluminum Reflector
WORKING TEMPERATURE --40C° ~ +55C°
VOLTAGE AC 110 - 277
MacAdam <3
UGR < 22
Luminous Efficacy (lm/W) 150
Weight (30W - 50W) 4.5Kg
Weight (100W - 150W) 6.0Kg
Weight (200W - 250W) 7.5Kg
SURGE PROTECTION 10KV
NEMA SOCKET
Technical Specifications:

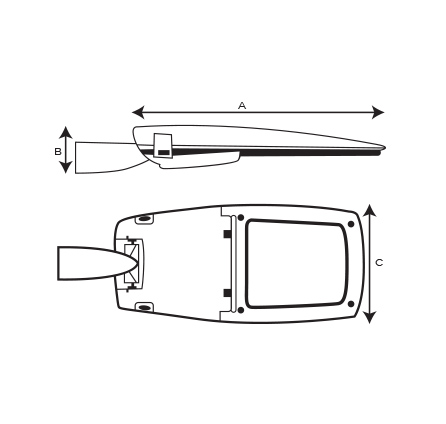

Item Code Power Lamp Lumen Dimensions
STXR311530 30W LED 4500lm A555 X B200 X C105 mm
STXR311550 50W LED 7500lm A555 X B200 X C105 mm
STXR3115100 100W LED 15000lm A615 X B233 X C100 mm
STXR3115120 120W LED 18000lm A615 X B233 X C100 mm
STXR3115150 150W LED 22500lm A675 X B260 X C100 mm
STXR3115200 200W LED 30000lm A675 X B260 X C100 mm
STXR3115250 250W LED 37500lm A675 X B260 X C100 mm
