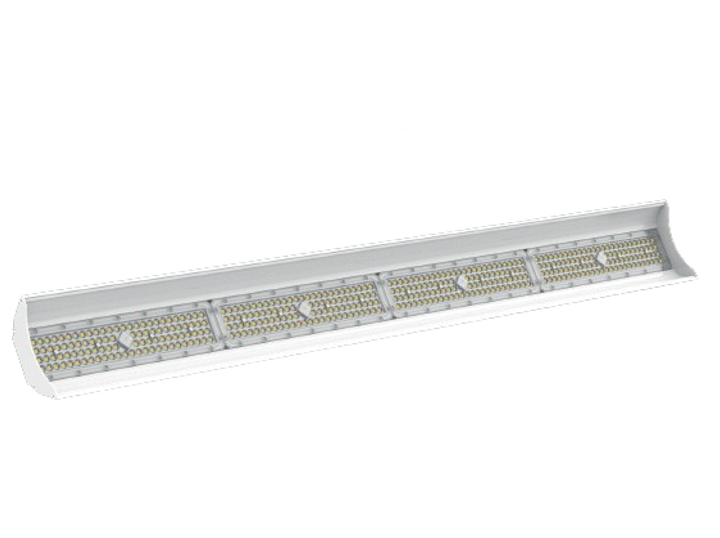

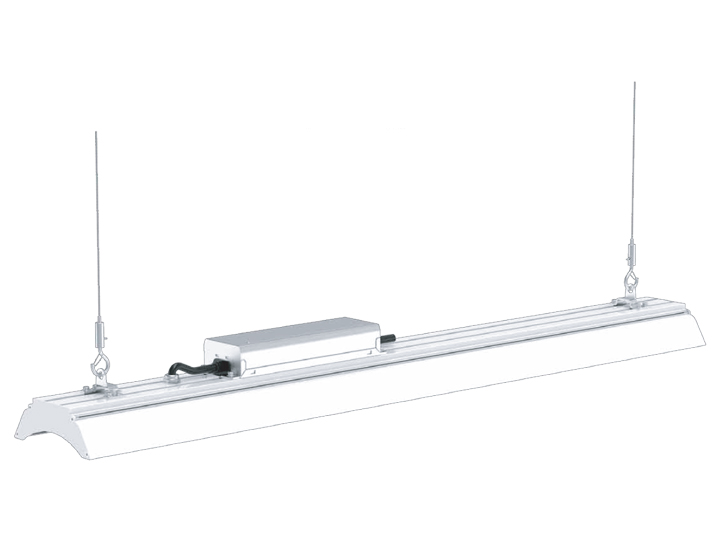

Saka

FEATURES

This powerful lighting solution is designed to meet the demands of high-ceiling applications such as warehouses,
factories, and other industrial settings. The beam angle is adjustable with options of 60°, and 90°, giving you the
flexibility to adjust the lighting angle based on your specific needs. The color temperature can also be adjusted
from 3000K to 6500K, allowing you to customize the lighting to suit your desired ambiance. The IP66 rating
ensures that this LED high bay light is protected against dust and water, making it suitable for use in harsh
environments.

Description:
HOUSING
Aluminum Alloy, Anodized
DIFFUSER Polycarbonate optical lens
COLOR AVAILABLE White   , Grey
LIFESPAN
100,000 Hours (L70 B20)
REFLECTOR
Aluminum Reflector
VOLTAGE  AC100-277V
WORKING TEMPERATURE -25C° ~ +50C°
UGR <22
LUMINOUS EFFICACY (lm/W) 170
MacAdam <3
Power Factor    >0.95
Technical Specifications:

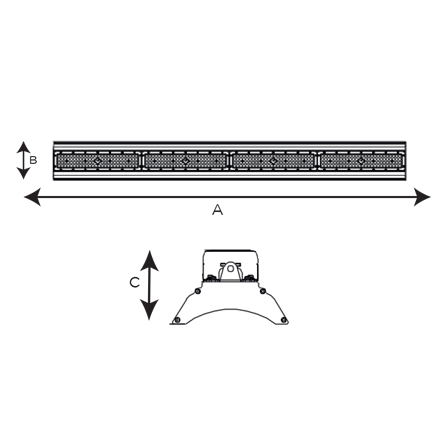

Item Code PowerLamp CCTLumen DIMENSIONS
IDXR2921100 100W LED 3000K, 4000K, 6000K 17000lm A605 X B133 X C83 mm
IDXR2921120
120W LED 3000K, 4000K, 6000K 20400lm A605 X B133 X C83 mm
IDXR2921150
150W LED 3000K, 4000K, 6000K 25500lm A905 X B133 X C83 mm
IDXR2921160
160W LED 3000K, 4000K, 6000K 27200lm A905 X B133 X C83 mm
IDXR2921180
180W LED 3000K, 4000K, 6000K 30600lm A1250 X B133 X C83 mm
IDXR2921200
200W LED 3000K, 4000K, 6000K 34000lm A1250 X B133 X C83 mm
