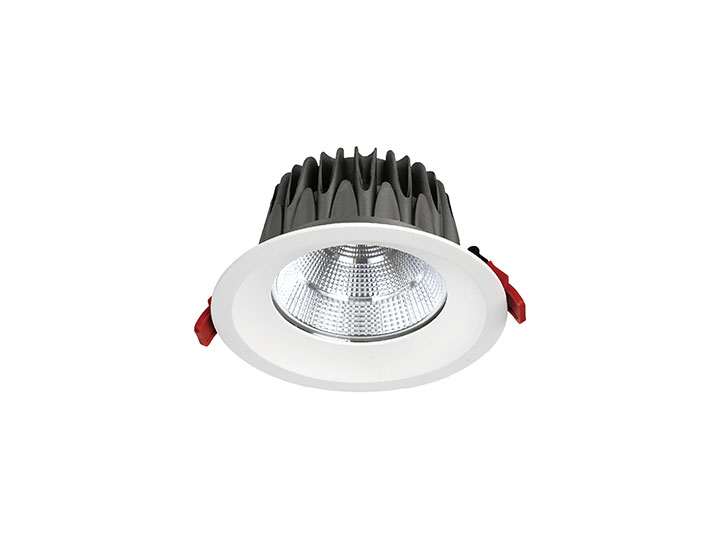

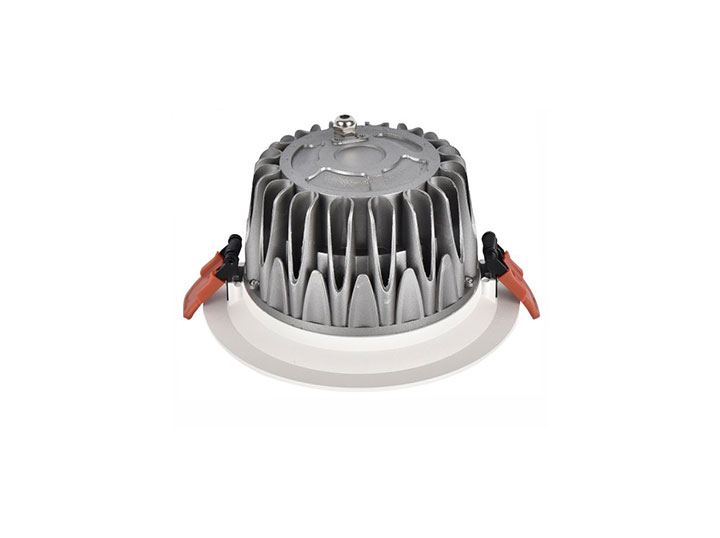

Ringo LED Down Light

Submit an enquiry

FEATURES

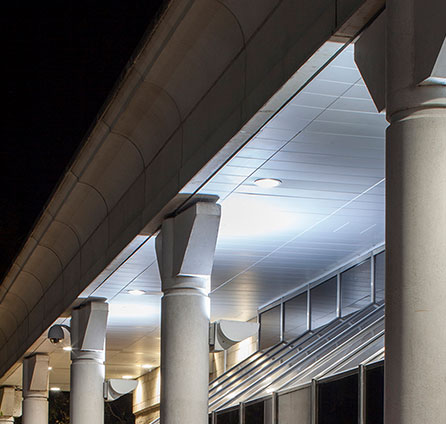

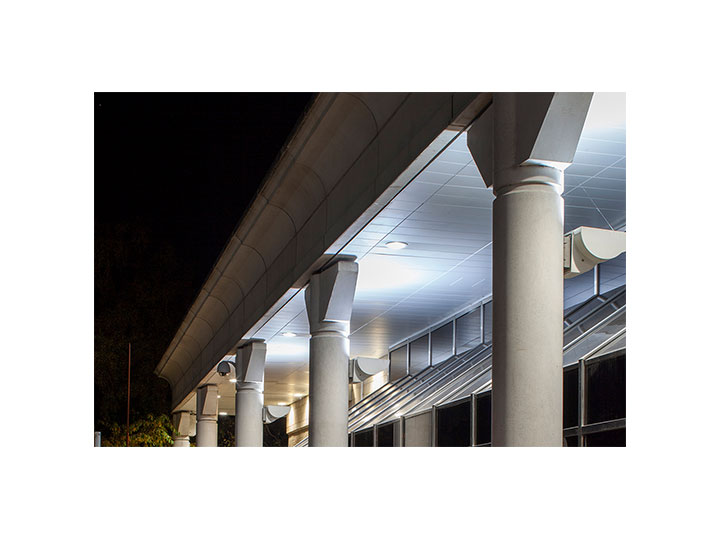

Ringo LED Down Light is recessed aluminum downlight available in white. This downlight design has been finished with a special paint treatment to ensure an extra-long lifespan and making it suitable for use under eaves and in water areas such as showers. It features semi anti-glare with a deep positioning and can be installed under insulation using an ICD driver, great thermal management, IP65 waterproof with high protection level, which offers a wider application area.

RINGO

Submit an enquiry
Description:
HOUSING Hard Die-cast Aluminum Body, White Powder Coated
DIFFUSER Tempered Frosted Glass Diffuser
COLOR AVAILABLE White
LIFESPAN
 >50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)
REFLECTOR
 Aluminum reflector
VOLTAGE AC220~240V
WORKING TEMPERATURE -40C° ~ +50C°
UGR <22
LUMINOUS EFFICACY (lm/W) 120
MacAdam <3
Technical Specifications:

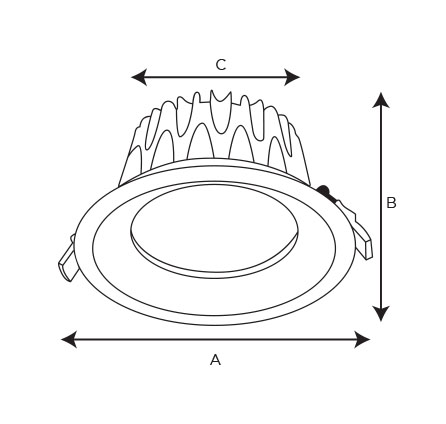

Item Code PowerLamp CCTLumen Dimensions
DXR179010 10W LED 3000K, 4000K, 6000K 1200lm A115 X B78 X C100 mm
DXR179015
 15W LED 3000K, 4000K, 6000K 1800lm A135 X B78 X C120 mm
DXR179020
 20W LED 3000K, 4000K, 6000K 2400lm A170 X B80 X C150 mm
DXR179030
 30W LED 3000K, 4000K, 6000K 3600lm A195 X B95 X C170 mm
DXR179040
 40W LED 3000K, 4000K, 6000K 4800lm A220 X B105 X C200 mm
