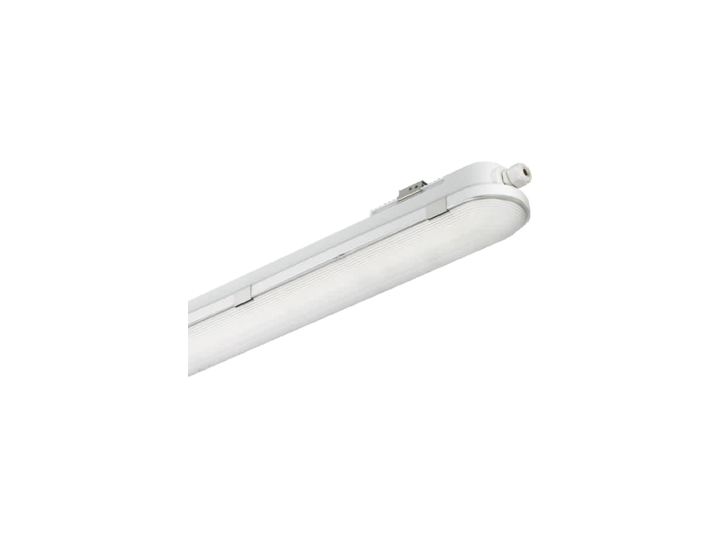

Rana Triproof Light

Submit an enquiry

FEATURES

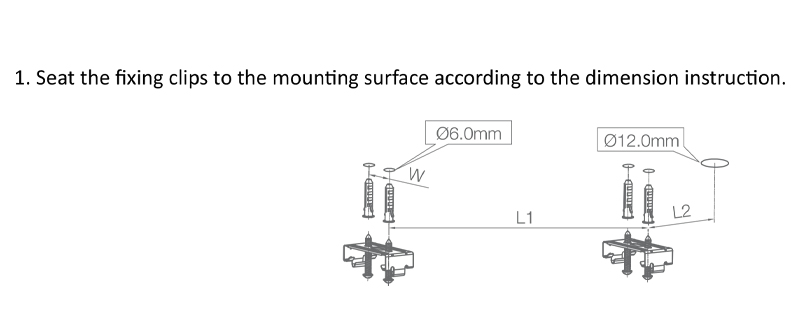

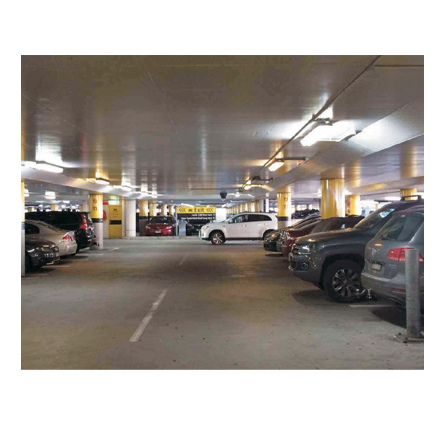

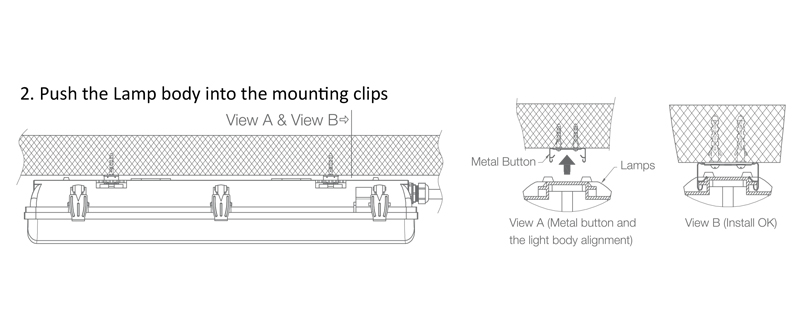

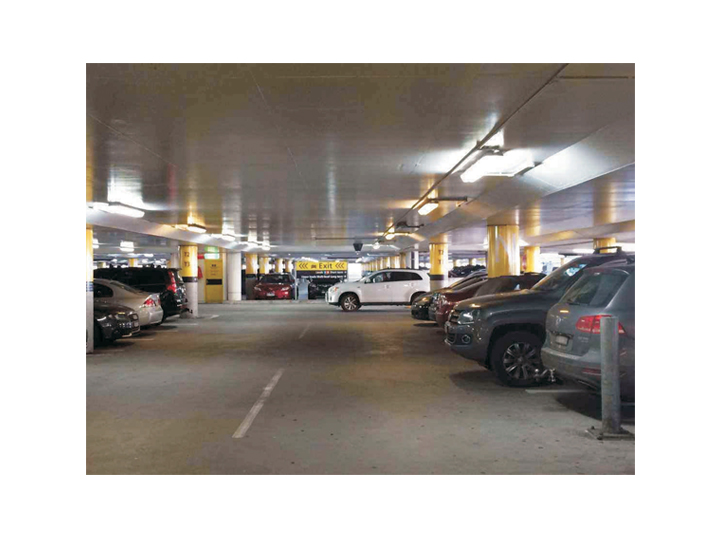

Rana Tri-Proof is IP66 luminaire for mounting on ceiling. Made of UV-stabilized polycarbonate. Rana LED waterproof is a very hardy luminaire, especially suitable for pig farms and the like. The LED compartment is IP66K protected to withstand ammonia gasses in such environments. The luminaire housing is made of hard UV-stabilized and anti-chemical coated polycarbonate. The coating is resistant to ammonia, washing detergents etc., and makes it suitable also for car wash halls and similar. It is easy to install by just snapping into mounting clips and using the unique one-hand closing mechanism at both ends. The looping options with double cable gland in each end and through wiring gives full flexibility for larger installations.

RANA

Submit an enquiry
Description:
HOUSING Injection Moulded, in Grey Polycarbonate, Vandal Resistant, UV Stabilized, High Mechanical Resistance due to the Frame Reinforced by Internal Ribbing.
DIFFUSER Injected Moulded in Polycarbonate with Internal Ribbing for Greater Lighting Control, in V2 self-extinguishing, UV-stabilized Material, Equipped with Stainless Steel Screw Clamping.
COLOR AVAILABLE Grey
LIFESPAN
 >50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)
REFLECTOR Aluminum Reflector
VOLTAGE AC220~240V
WORKING TEMPERATURE -40C° ~ +50C°
UGR <20
LUMINOUS EFFICACY (lm/W) 150
MacAdam <3
Technical Specifications:

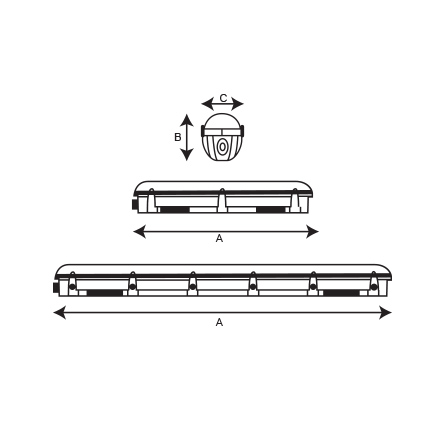

Item Code Power Lamp Lumen Dimensions
IDXR291020 20W LED 3000lm A650 x B97 x C82 mm
IDXR291036 36W LED
 5400lm A1220 x B97 x C82 mm
IDXR291040 40W LED
 6000lm A1220 x B97 x C82 mm
IDXR291050 50W LED
 7500lm A1220 x B97 x C82 mm
IDXR291060
 60W LED
 9000lm A1560 x B97 x C82 mm
IDXR291070 70W LED
 10500lm A1560 x B97 x C82 mm
