BRAND: MAZDA
|
MODEL: SXR1890
|
REF: sxr1890
|
CAT: Spot Light
ACTIVE
PHOTOMETRIC ANALYSIS
BEAM PATTERN
CCT: 4000K
INT: NOMINAL
KEEPER A
Spot Light

KEEPER A

MODEL: SXR1890
SKU: sxr1890
BRAND: MAZDA

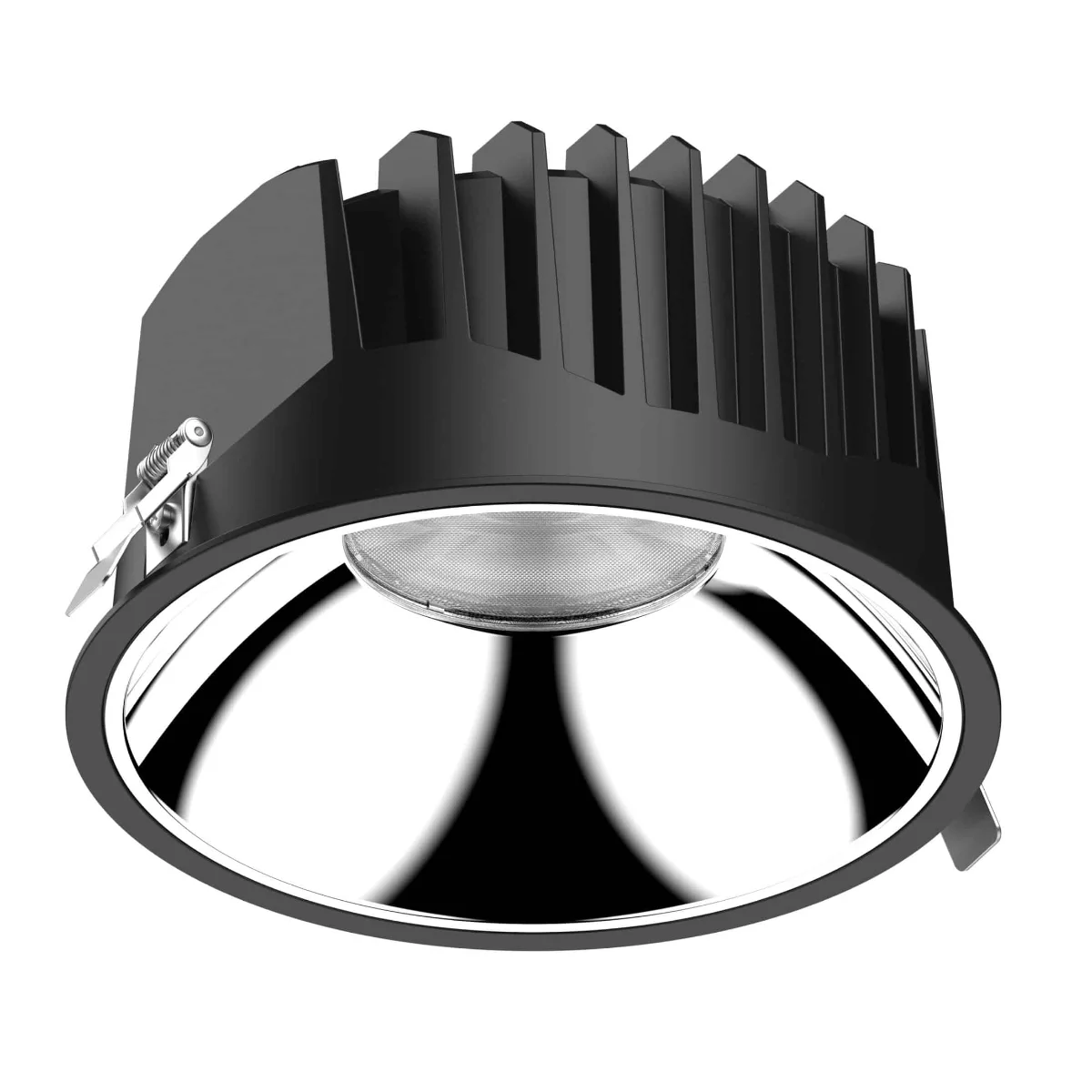

LED Spot Light Attractive exclusive downlight for indoor or outdoor use, particularly well suited to basic lighting due
to its very low unified glare rating. Well integrated LED chip and associated dimmable driver. Made of
die-cast powder-coated aluminium. Low recessed downlight with hole size. This unique design skillfully prevent the
human eyes contact with the light sources directly, makes the light more soft. Meanwhile the light efficiency with
perfect accent lighting performance. That makes it become the priority selected product for commercial lighting.
Great cooling fins heat sink design increases the interface between heat sink and air, which makes the heat
dissipating performance outstanding and extend the service life of the downlight. Suitable for commercial and
residential applications like office, supermarket, shop, school, hotel, restaurant, workshop, warehouse, home etc

WATT
CCT
Voltage
Body Color
Control
Dimension
lumen
Emergency Backup
GENERATED PRODUCT CODE
SELECT OPTIONS ABOVE
GENERATE DATASHEET

Technical Specifications

Code
SXR1890
WATT
07W / 12W
CCT
3000 / 4000 / 5000 / 6000 / 2700 / 6500
Voltage
240V
Body Color
BLACK / WHITE
Control
ON - OFF / DALI DIMMABLE DRIVER / PHASE CUT DIMMABLE / 0/1-10 V DIMMABLE DRIVER
Emergency Backup
NON EMERGENCY / 3 HOUR EMERGENCY BACKUP
Beam Angel
15°, 24°, 36°
Dimension
A60 X B48 X C55MM / A82 X B62 X C75MM
Material
DIE CAST ALUMINUM
IP
IP44
lumen
840LM / 1440LM
mazda-led@engineering: ~/datasheets/sxr1890
mazda-led@eng:~$ ls -la ./pdfs
MASTER_DATASHEET_ALL_VARIANTS.pdf Complete technical specs for all configurations.
mazda-led@eng:~$ fetch --variant SELECTED_CODE
SPECIFIC_VARIANT_DATASHEET.pdf Datasheet for the currently selected configuration.
mazda-led@eng:~$ ls -la ./attached_documents
1. TECHNICAL DATASHEET Locked — Member login required
2. LED CHIP & LED DRIVER Locked — Member login required
2. LED CHIP & LED DRIVER Locked — Member login required
3. TEST REPORT - (LM79, LM80, ROHS, SAFETY) Locked — Member login required
SECURE DOWNLOAD AUTHENTICATION REQUIRED
