PHOTOMETRIC ANALYSIS

BEAM PATTERN

CCT: 4000K

INT: NOMINAL

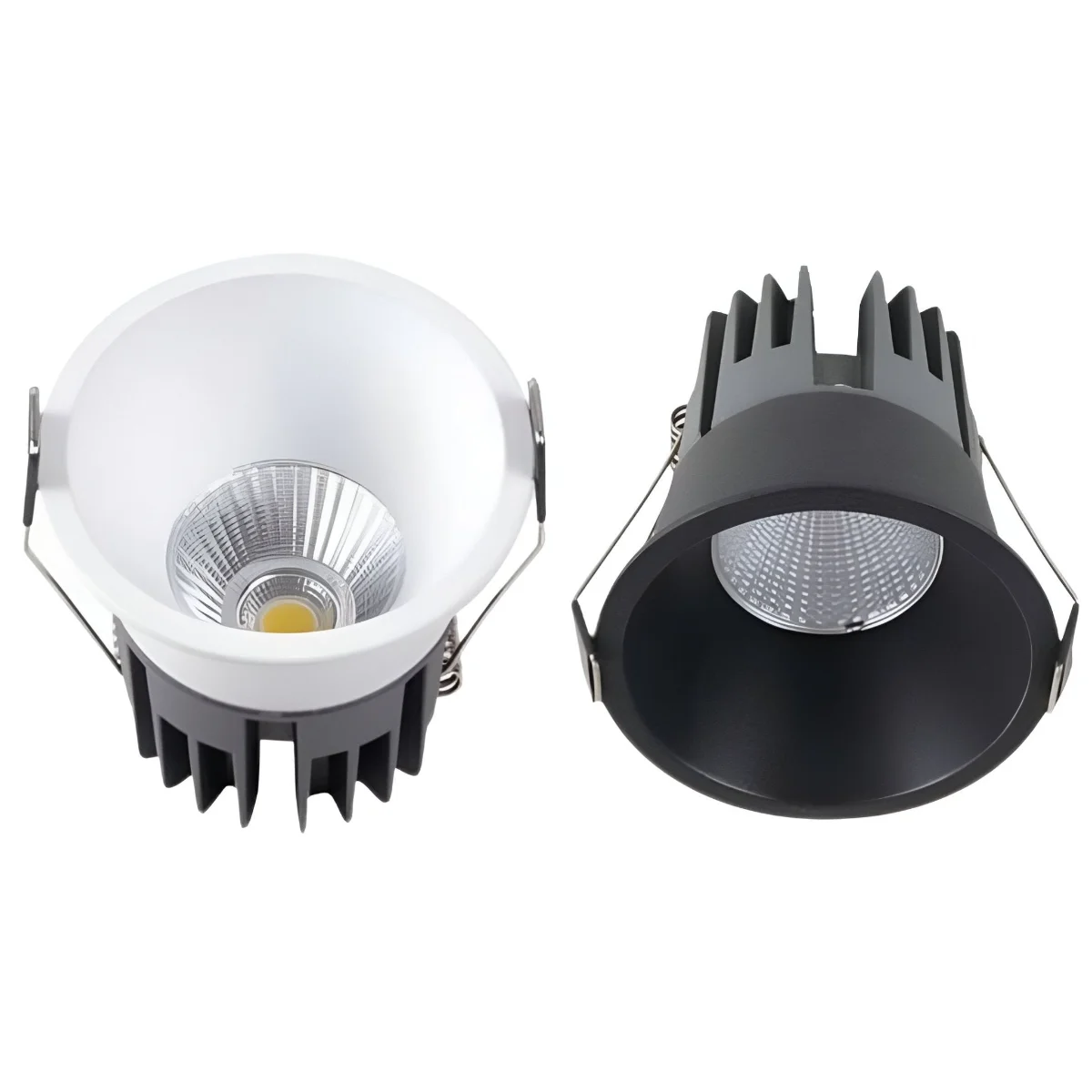

Downlight

MAX

MODEL: DXR1745

SKU: dxr1745

BRAND: MAZDA

Transform your space with a focused wash of light. This versatile downlight is engineered to deliver high
candela intensity, making it perfect for creating visual emphasis and atmosphere. Whether highlighting
displays, this fixture combines energy e ciency with professional-grade lighting control

WATT

CCT

Voltage

Body Color

Control

Dimension

lumen

Emergency Backup

GENERATED PRODUCT CODE

SELECT OPTIONS ABOVE

GENERATE DATASHEET

Technical Specifications

Code

DXR1745

WATT

15W / 25W / 35W / 50W

CCT

3000 / 4000 / 5000 / 6000 / 2700 / 6500

Voltage

240V

Body Color

BLACK & WHITE

Control

ON - OFF / DALI DIMMABLE DRIVER / PHASE CUT DIMMABLE / 0/1-10 V DIMMABLE DRIVER

Emergency Backup

NON EMERGENCY

Beam Angel

15°, 24°, 36°

Dimension

A95XB89XC85MM / A125XB113XC115MM / A151XB140XC140MM

Material

DIE CAST ALUMINUM

IP54

lumen

1800LM / 3000LM / 4200LM / 6000LM

mazda-led@engineering: ~/datasheets/dxr1745

mazda-led@eng:~$ ls -la ./pdfs

MASTER_DATASHEET_ALL_VARIANTS.pdf Complete technical specs for all configurations.

mazda-led@eng:~$ fetch --variant SELECTED_CODE

SPECIFIC_VARIANT_DATASHEET.pdf Datasheet for the currently selected configuration.

mazda-led@eng:~$ ls -la ./attached_documents

1. TECHNICAL DATASHEET Locked — Member login required

2. LED CHIP & LED DRIVER Locked — Member login required

3. TEST REPORT - (LM79, LM80, ROHS, SAFETY) Locked — Member login required

SECURE DOWNLOAD AUTHENTICATION REQUIRED
