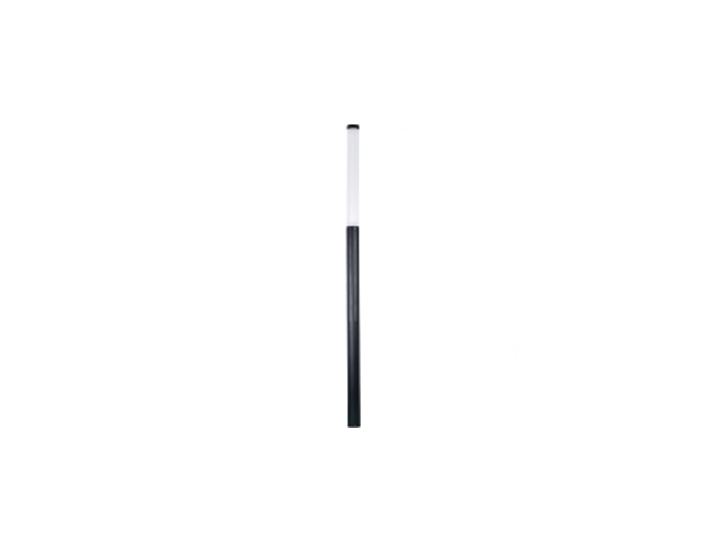

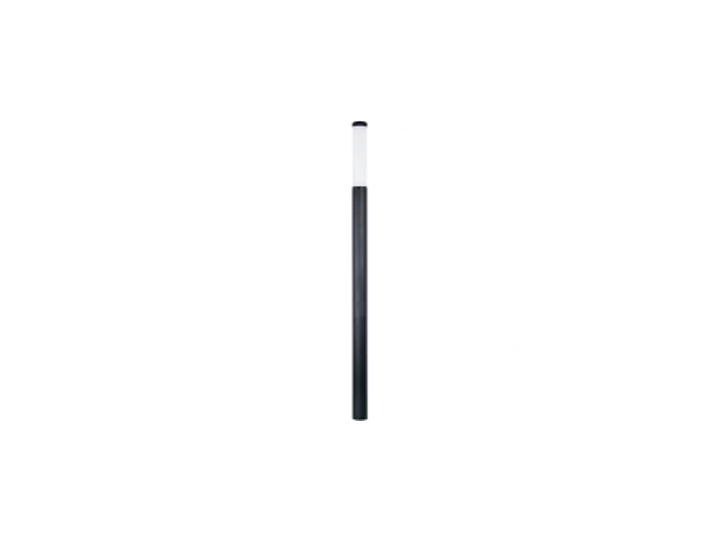

Pinko I Post Top Light

Submit an enquiry

FEATURES

The primary appeal of LED street lighting is energy efficiency compared to conventional street lighting fixture technologies such as high-pressure sodium (HPS) and metal halide (MH). Environmentally friendly alternative to traditional lightning. Resistant to ambient temperatures up to 20°C to +55°C.High Power LEDs. The finish is accessible in the RAL colors requested by client.

PINKO I

Submit an enquiry
Description:
HOUSING
Die-cast Aluminum Body, Aluminum Extruded Column
DIFFUSER Polycarbonate Opal Diffuser
COLOR AVAILABLE Powder Paint Coating with RAL Color.
LIFESPAN 100,000 Hours (L90 B50)
REFLECTOR Aluminum Reflector
VOLTAGE AC100-240V
WORKING TEMPERATURE -40C° ~ +55C°
LUMINOUS EFFICACY (lm/W) 130
UGR <22
MacAdam <3
Technical Specifications:

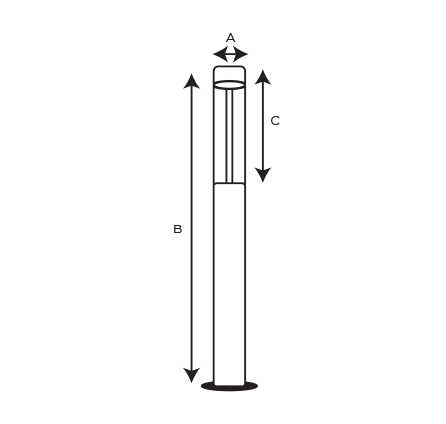

Item Code PowerLamp CCTLumen DIMENSIONS
STXR314120-H275 20W LED 3000K, 4000K, 6000K 2600lm A160 X B2750 mm
STXR314135-H275 35W LED 3000K, 4000K, 6000K 4550lm A160 X B2750 mm
STXR314140-H355 40W LED 3000K, 4000K, 6000K 5200lm A160 X B3550 mm
STXR314165-H400 65W LED 3000K, 4000K, 6000K 8450lm A160 X B4000 mm
