| Description: | |
| HOUSING |
Die-cast Aluminum,AISI 316 Stainless Steel trim and screws.
|
| DIFFUSER | Tempered Safety Glass |
| COLOR AVAILABLE | Black, Light Grey
|
| LIFESPAN |
100,000 Hours (L90 B50) |
| REFLECTOR | High purity anodized aluminum reflector. |
| VOLTAGE | AC100~240V/ DC24V 50-60 HZ |
| WORKING TEMPERATURE | -40C° ~ +55C° |
| LUMINOUS EFFICACY (lm/W) | 80 |
| UGR | <16 ~21 |
| MacAdam | <3 |
| Accessories | Polycarbonate Recessed Box |
| Technical Specifications: | |||||
| Item Code | Power | Lamp | CCT | Lumen | DIMENSIONS |
|---|---|---|---|---|---|

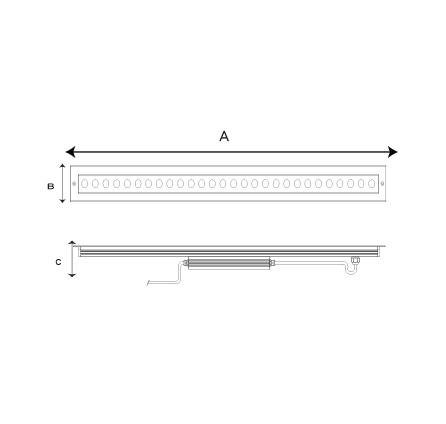

| UPXR657705 | 05W | LED | 3000K, 4000K, 6000K | 400lm | A339 X B88 X C34 mm |
| UPXR657708 | 08W | LED | 3000K, 4000K, 6000K | 640lm | A339 X B88 X C34 mm |
| UPXR657710 | 10W | LED | 3000K, 4000K, 6000K | 800lm | A550 X B88 X C34 mm |
| UPXR657715 | 15W | LED | 3000K, 4000K, 6000K | 1200lm | A550 X B88 X C34 mm |
| UPXR657720 | 20W | LED | 3000K, 4000K, 6000K | 1600lm | A550 X B88 X C34 mm |
| UPXR657730 | 30W | LED | 3000K, 4000K, 6000K | 2400lm | A1039 X B88 X C34 mm |
| UPXR657740 | 40W | LED | 3000K, 4000K, 6000K | 3200lm | A1039 X B88 X C34 mm |
