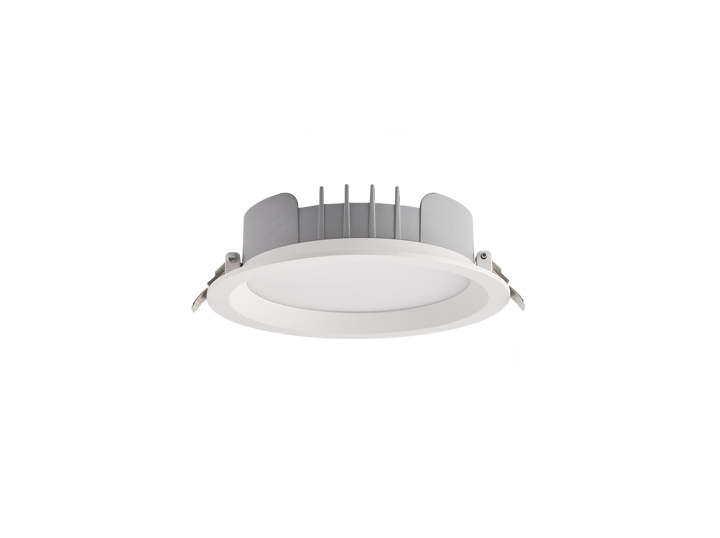

Panelo LED Down Light

Submit an enquiry

FEATURES

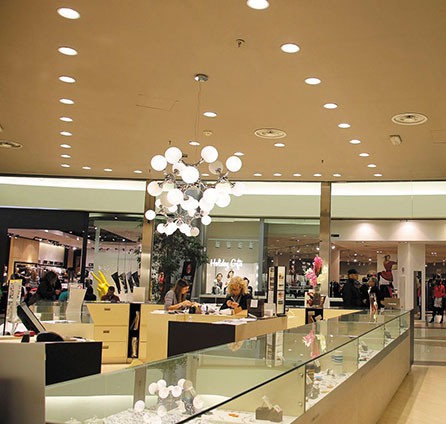

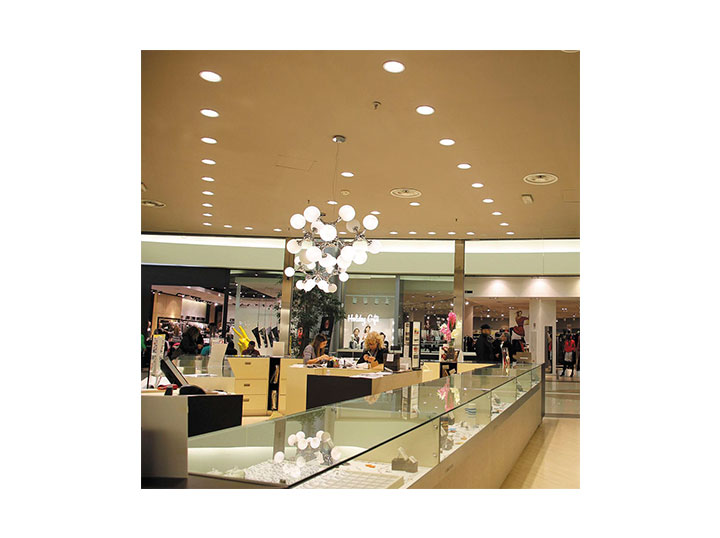

Panelo LED Down Light is recognized as one of the most trusted and highly desirable consumer fitting, we manufactured. it to the highest standards. This superior design skillfully prevents the human eyes contact with the light sources directly, makes the light softer. Meanwhile the light efficiency reaches to 120lm/w with perfect accent lighting performance. That makes it become the priority selected product for commercial lighting. Great cooling fins heat sink design increases the interface between heat sink and air, which makes the heat dissipating performance outstanding and extend the service life. of the downlight. Suitable for commercial and residential applications like office, supermarket, shop, school, hotel, restaurant, workshop, warehouse, home etc. It's IP54 and it can be IP65 based on client requests.

PANELO

Submit an enquiry
Description:
HOUSING Luminaire Body Die-cast Aluminum, White Powder-coated
DIFFUSER Opal/Frosted PMMA/Polycarbonate
COLOR AVAILABLE White
LIFESPAN
 >50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)
REFLECTOR
 Aluminum reflector
VOLTAGE AC220~240V
WORKING TEMPERATURE
 -40C° ~ +50C°
UGR <22
LUMINOUS EFFICACY (lm/W) 120
MacAdam <3
Technical Specifications:

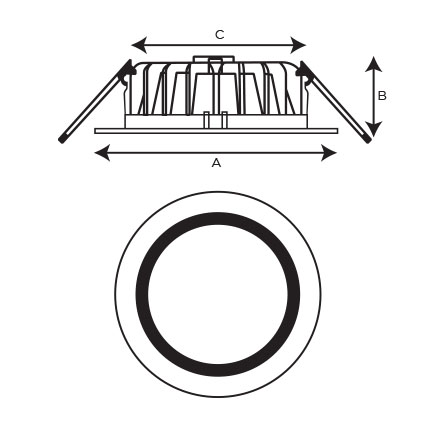

Item Code PowerLamp CCTLumen Dimensions
DXR174008 08W LED 3000K, 4000K, 6000K 960lm A100 X B36 X C90 mm
DXR174012 12W LED 3000K, 4000K, 6000K 1440lm A140 X B38 X C125 mm
DXR174015 15W LED 3000K, 4000K, 6000K 1800lm A140 X B38 X C125 mm
DXR174018 18W LED 3000K, 4000K, 6000K 2160lm A165 X B38 X C150 mm
DXR174020 20W LED 3000K, 4000K, 6000K 2400lm A165 X B38 X C150 mm
DXR174025 25W LED 3000K, 4000K, 6000K 3000lm A215 X B41 X C200 mm
DXR174030 30W LED 3000K, 4000K, 6000K 3600lm A215 X B41 X C200 mm
