Description: | |
HOUSING |
AISI 316 stainless steel.
|
DIFFUSER | Tempered Safety Glass |
COLOR AVAILABLE | Black
|
LIFESPAN |
100,000 Hours (L90 B50) |
REFLECTOR | PMMA lenses for LEDs |
VOLTAGE | AC100~240V/ DC24V 50-60 HZ |
WORKING TEMPERATURE | -40C° ~ +55C° |
LUMINOUS EFFICACY (lm/W) | 80 |
UGR | <16 ~ 21 |
MacAdam | <3 |
Accessories | Polycarbonate Recessed Box |
Technical Specifications: | |||||

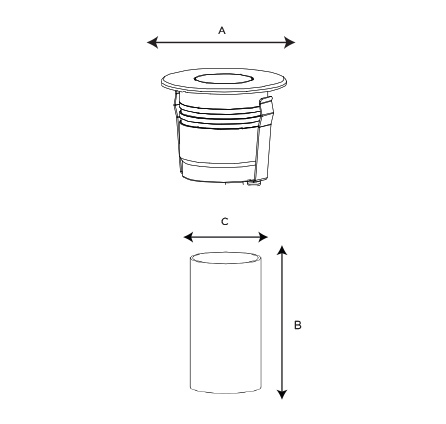

Item Code | Power | Lamp | CCT | Lumen | DIMENSIONS |
---|---|---|---|---|---|
UPXR651301 | 01W | LED | 3000K, 4000K, 6000K | 80lm | A28 X B85 X C25 mm |
UPXR651301.5 | 1.5W | LED | 3000K, 4000K, 6000K | 120lm | A38 X B85 X C33 mm |
UPXR651302 | 02W | LED | 3000K, 4000K, 6000K | 160lm | A50 X B85 X C45 mm |
UPXR651303 | 03W | LED | 3000K, 4000K, 6000K | 240lm | A70 X B85 X C56 mm |
