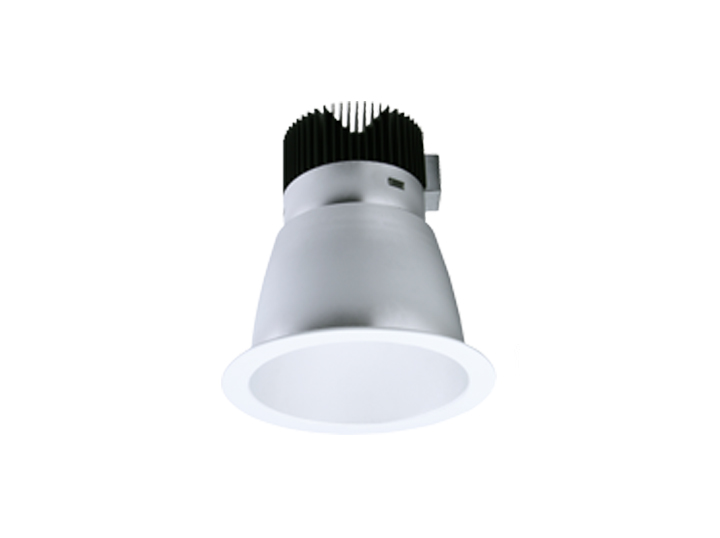

NAPOLEON LED Down Light

Submit an enquiry

FEATURES

Napoleon downlight retrofit kits are designed with a Cree COB LED chip. The utilization of a highly efficient reflector helps to improve lumen output. 4 inch, 6inch inch and 10inch full sizes are available in different wattages. The 0–10V dimmable driver works with most of the local dimmers. UL& cUL and energy Star approved. It is designed for general lighting applications in office, supermarkets, shops, schools, hotels, etc. It is also widely used for public areas, such as stairways, hallways, receptions, and corridors. Complying with UL standards.

NAPOLEON - UL

Submit an enquiry
Description:
HOUSING Luminaire Body of Die-cast Aluminum and Heat Sink form a compact unit, white, powder-coated.
DIFFUSER Clear Tempered Glass
COLOR AVAILABLE White
LIFESPAN
 >50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)
REFLECTOR
 Aluminum reflector
VOLTAGE AC220~240V
WORKING TEMPERATURE -25C° ~ +45C°
UGR <19
LUMINOUS EFFICACY (lm/W) 120
MacAdam <3
Technical Specifications:
Item Code PowerLamp CCTLumen DIMENSIONS
DXR173515 15W LED 3000K, 4000K, 6000K 1800lm A190 X B190 mm
DXR173518 18W LED 3000K, 4000K, 6000K 2160lm A190 X B190 mm
DXR173520
 20W LED 3000K, 4000K, 6000K 2400lm A190 X B190 mm
DXR173525 25W LED 3000K, 4000K, 6000K 3000lm A190 X B190 mm
