Max LED Down Light

Submit an enquiry

FEATURES

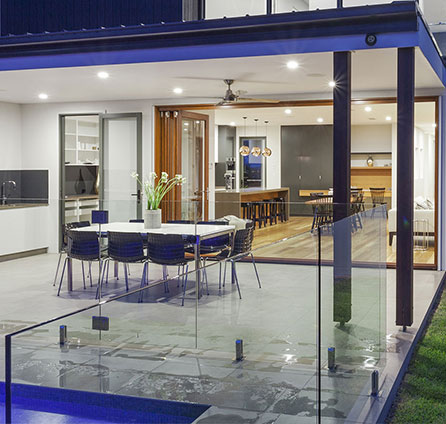

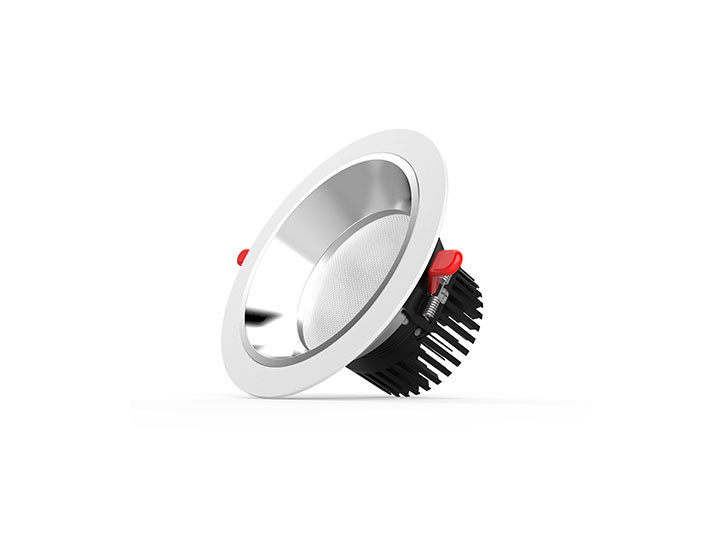

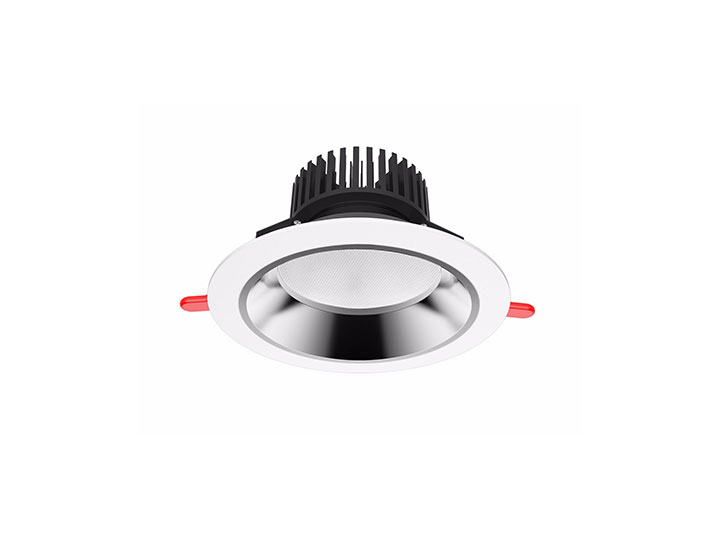

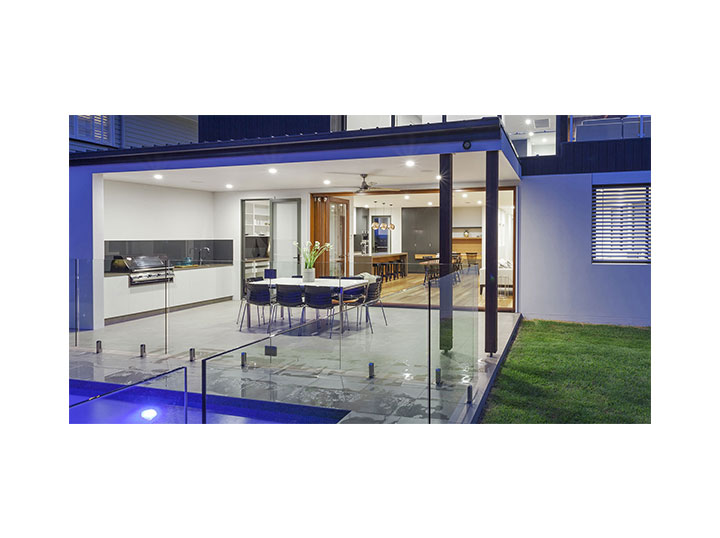

Max LED Down Light is recessed ceiling-mounted downlights with symmetrical light distribution to achieve an effective accent, task or general lighting.

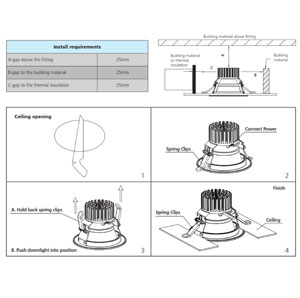

Flush installation, the fixture is completely fitted in the ceiling void. Installation in plasterboard ceilings. Circular design available in 4 diameters, powder painted die-cast aluminum trim available in white, silver, chrome surface treatment for different application. High-purity aluminum reflector in assorted finishes: specular anodized, facetted metalized or sandblasted anodized depending on the beam angle outcome.

MAX

Submit an enquiry
Description:

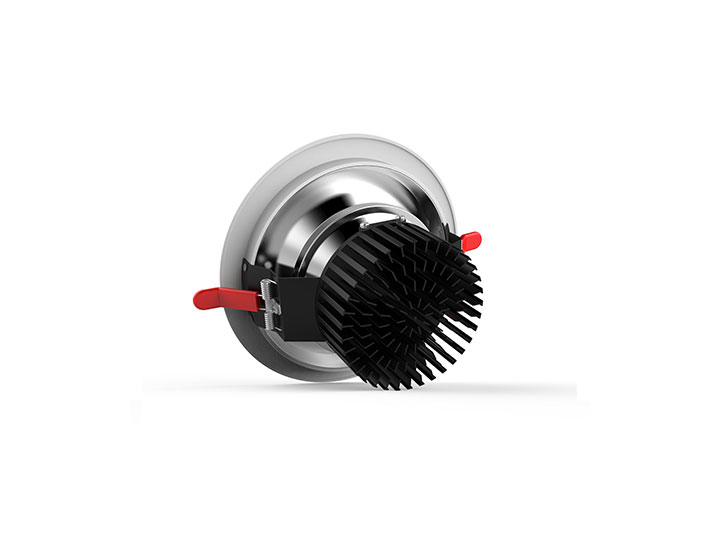

HOUSING Luminaire Body of Die-cast Aluminum, Heat Sink Adopts Cold Forging Treatment AL1070 Pure Aluminum with Excellent Heat Dissipation Performance & Very Light.
DIFFUSER Opal PMMA Diffuser; Anti-glare
COLOR AVAILABLE White
LIFESPAN
 >50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)
REFLECTOR
 Aluminum reflector
VOLTAGE AC220~240V
WORKING TEMPERATURE
 -40C° ~ +50C°
UGR <19
LUMINOUS EFFICACY (lm/W) 120
MacAdam <3
Technical Specifications:

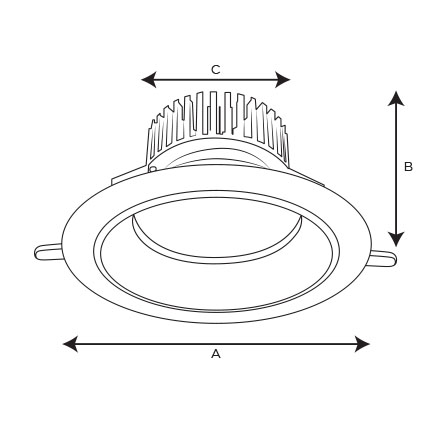

Item Code PowerLamp CCTLumen DIMENSIONS
DXR174520 20W LED 3000K, 4000K, 6000K 2400lm A110 X B80 X C90 mm
DXR174524 24W LED 3000K, 4000K, 6000K 2880lm A110 X B80 X C90 mm
