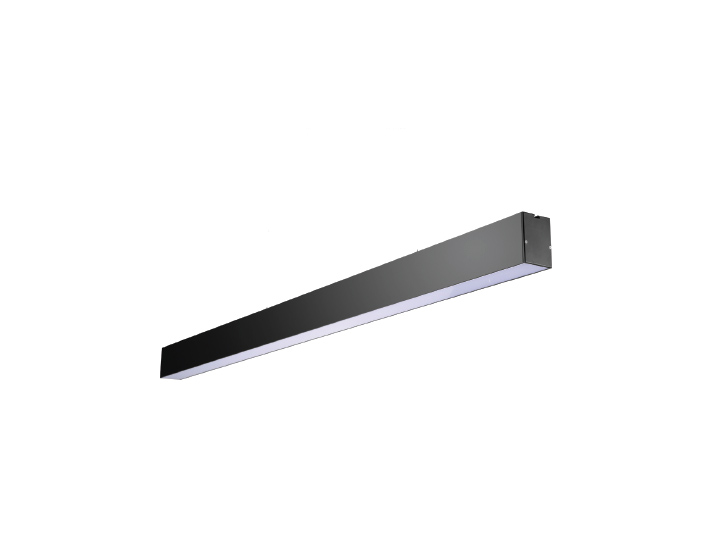

Marko II Linear Light

Submit an enquiry

FEATURES

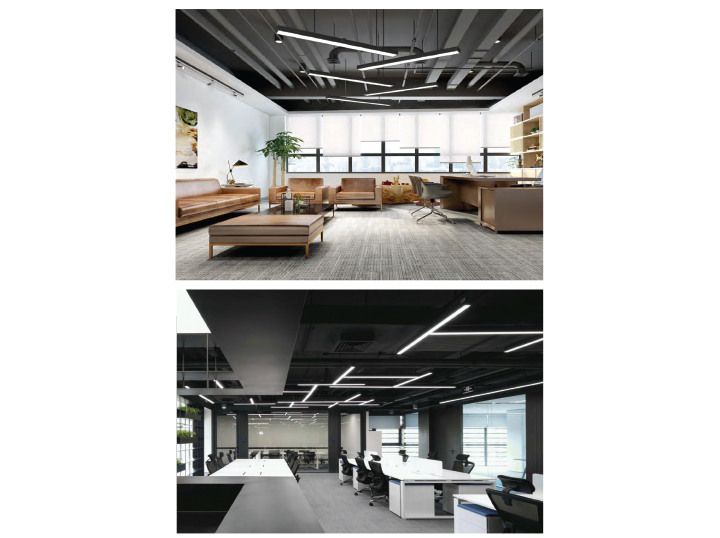

Marko II Aluminum profiles/channel is made of sturdy anodized or powder-coated aluminum metal and has a specific design to protect the LED strip and create a softer lighting effect. The aluminum profile/channel is a great housing and an excellent heat sink for flexible LED strips. The profiles cover ceiling applications like Hotels, Supermarkets, Offices, Exhibitions, workstations, or any other visible installations where the strip lighting is exposed. Snap-on covers in Clear, Opal matt, and Frosted diffusers support the profiles. Available in customized lengths. It comes with accessories such as a cover, end caps and a pendant.

MARKO II

Submit an enquiry
Description:
HOUSING High Pure Extruded Aluminum, Anodized
DIFFUSER
Polycarbonate/PMMA Opal Diffuser Specially for LED
COLOR AVAILABLE White, Black, Silver (other color available upon request)
LIFESPAN >50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)
REFLECTOR Aluminum Reflector
VOLTAGE AC200-240V
WORKING TEMPERATURE -40C° ~ +50C°
UGR < 22
Luminous Efficacy (lm/W) 160
MacAdam <3
Accessories Surface Mounted, Suspended, Recessed
Technical Specifications:

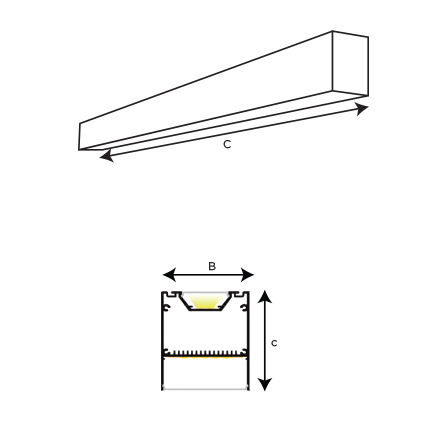

Item Code PowerLamp CCTLumen DIMENSIONS
PDXR3525 25W LED 3000K, 4000K, 6000K 4000lm A1204 X B80 X C60 mm
PDXR3530 30W LED 3000K, 4000K, 6000K 4800lm A1204 X B80 X C60 mm
PDXR3536 36W LED 3000K, 4000K, 6000K 5760lm A1204 X B80 X C60 mm
PDXR3542 42W LED 3000K, 4000K, 6000K 6720lm A1504 X B80 X C60 mm
PDXR3550 50W LED 3000K, 4000K, 6000K 8000lm A1204 X B80 X C60 mm
PDXR3560 60W LED 3000K, 4000K, 6000K 9600lm A1504 X B80 X C60 mm
