FEATURES

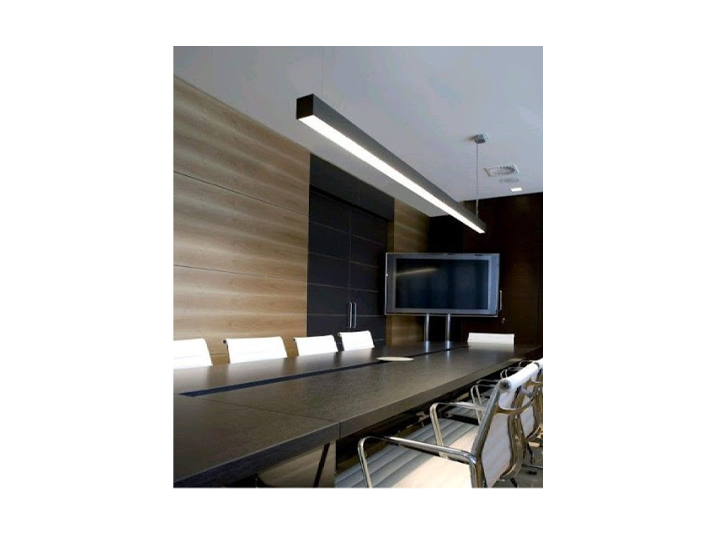

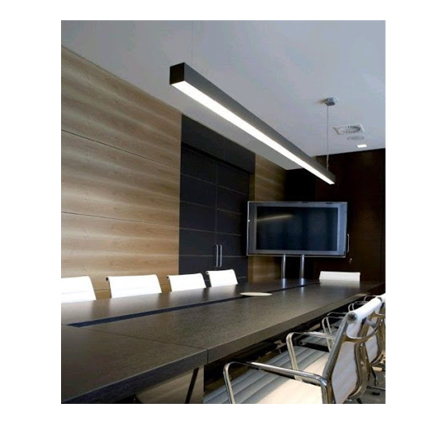

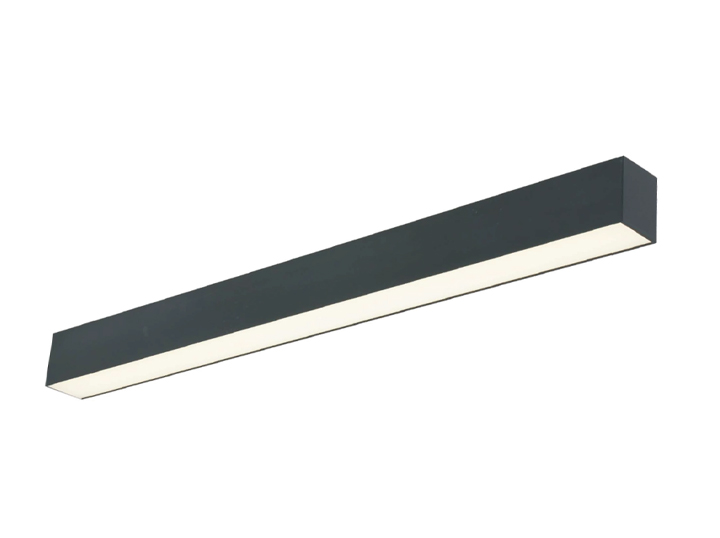

Marko Aluminum profiles/channel is made of sturdy anodized or powder-coated aluminum metal and has a specific design to protect the LED strip and create a softer lighting effect. The aluminum profile/channel is a great housing and an excellent heat sink for flexible LED strips. The profiles cover various ceiling applications like Hotels, Supermarkets, Offices, Exhibitions, workstations, or any other visible installations where the strip lighting is exposed. Snap-on covers in Clear, Opal matt, and Frosted diffusers support the profiles. (other colors available on request)

MARKO

Submit an enquiry
Description:
HOUSING High Pure Extruded Aluminum, Anodized
DIFFUSER
Polycarbonate/PMMA Opal Diffuser Specially for LED
COLOR AVAILABLE White, Black, Silver Powder Coating (other color available upon request)
LIFESPAN >50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)
REFLECTOR Aluminum Reflector
VOLTAGE AC200-240V
WORKING TEMPERATURE -40C° ~ +50C°
UGR < 22
Luminous Efficacy (lm/W) 120
MacAdam <3

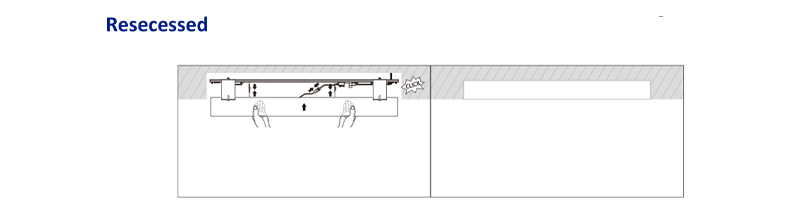

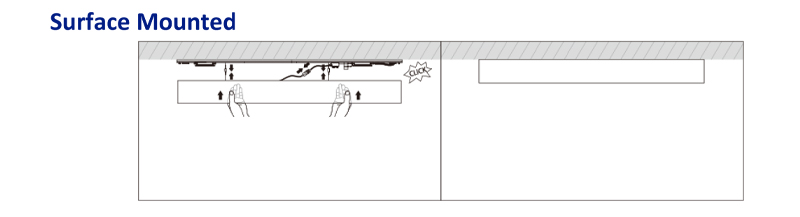

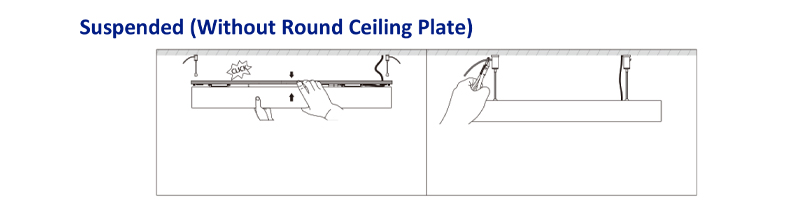

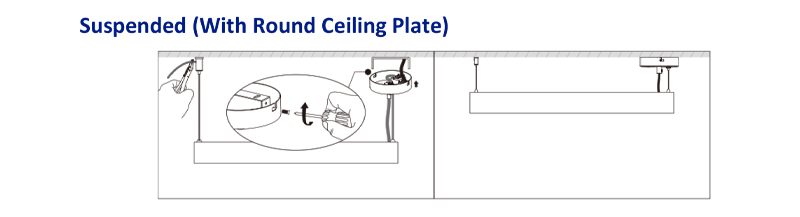

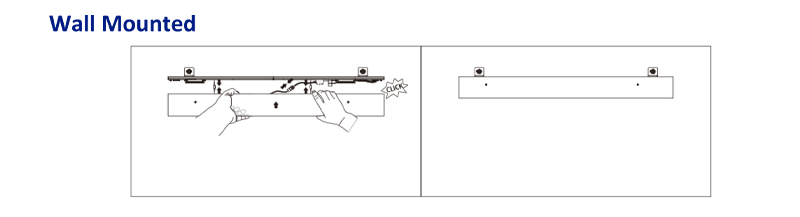

Accessories Surface Mounted, Suspended, Recessed
Technical Specifications:
Item Code PowerLamp CCTLumen DIMENSIONS
PDXR3020 20W LED 3000K, 4000K, 6000K 2400lm A1204 X B75 X C50 mm
PDXR3025 25W LED 3000K, 4000K, 6000K 3000lm A1204 X B75 X C50 mm
PDXR3030 30W LED 3000K, 4000K, 6000K 3600lm A1204 X B75 X C50 mm
PDXR3036 36W LED 3000K, 4000K, 6000K 4320lm A1204 X B75 X C50 mm
PDXR3040 40W LED 3000K, 4000K, 6000K 4800lm A1204 X B75 X C50 mm
PDXR3048 48W LED 3000K, 4000K, 6000K 5760lm A1204 X B75 X C50 mm
