FEATURES

Malo II LED Spotlight is recessed ceiling spotlight, with an essential and complementary shape adopts super slim and
compact design, perfectly suitable for the narrow ceiling installation. IP65 rating front cover design, suitable for damp
environment. T-shape heat sink greatly increases the radiation area and improves cooling efficiency. The fitting could be
adjust from 0-30 degree in horizontal direction, which can expand the illumination area.

MALO II

Submit an enquiry
Description:
HOUSING Luminaire Body of Die-cast Aluminum, White, Powder-coated and Heat Sink Form a Compact Unit
DIFFUSER Clear Tempered Glass
COLOR AVAILABLE White/Black
LIFESPAN
 >50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)
REFLECTOR
 Aluminum reflector
VOLTAGE AC220~240V
WORKING TEMPERATURE
 -40C° ~ +50C°
UGR < 13
LUMINOUS EFFICACY (lm/W) 120
MacAdam <3
Technical Specifications:

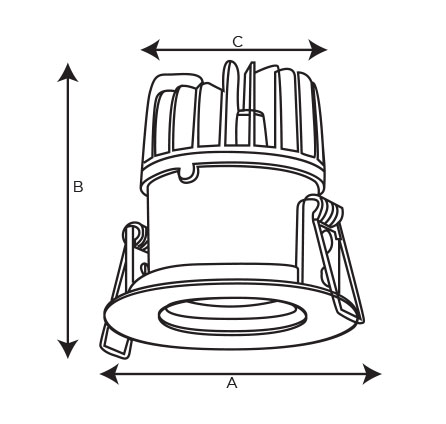

Item Code PowerLamp CCTLumen DIMENSIONS
SXR187710 10W LED 3000K, 4000K, 6000K 1200lm A90 X B86 X C83 mm
SXR187712 12W LED 3000K, 4000K, 6000K 1440lm A90 X B86 X C83 mm
