Lyre High Bay Light

Submit an enquiry

FEATURES

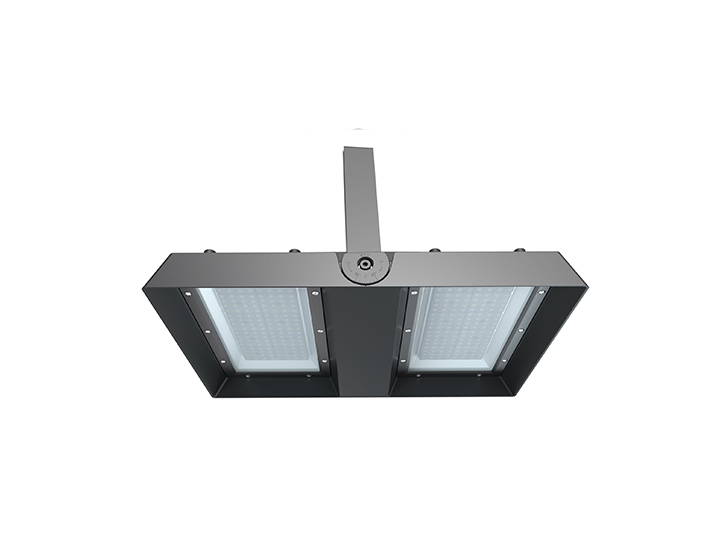

Lyre LED a square highbay light is a type of lighting fixture designed for high-ceiling environments such as warehouses, industrial facilities, and commercial spaces. It is characterized by its square shape and is typically installed at heights ranging from 15 feet to 40 feet or higher. Square highbay lights are known for their powerful illumination, providing bright and uniform light distribution over large areas. They are equipped with energy-efficient LED technology, which offers long-lasting performance and significant energy savings compared to traditional lighting options. Square highbay lights often feature a rugged and durable construction to withstand harsh conditions and are designed to provide optimal lighting for efficient productivity and safety in industrial settings.

LYRE

Submit an enquiry
Description:
HOUSING
Die-Cast Aluminum
DIFFUSER PC Optical Lens and Tempered Glass
COLOR AVAILABLE Black, Grey
LIFESPAN
 >50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)
REFLECTOR
 Aluminum Reflector
VOLTAGE  AC100-277V
WORKING TEMPERATURE -40C° ~ +50C°
UGR <25
LUMINOUS EFFICACY (lm/W) 160
MacAdam <3
Technical Specifications:

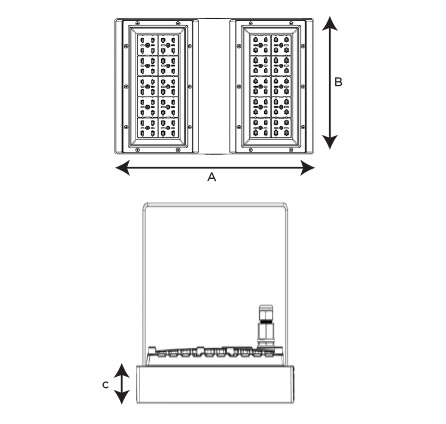

Item Code PowerLamp CCTLumen DIMENSIONS
IDXR2945100 100W LED 3000K, 4000K, 6000K 16000lm A490 X B360 X C95 mm
IDXR2945120 120W LED 3000K, 4000K, 6000K 19200lm A490 X B360 X C95 mm
IDXR2945140
 140W LED 3000K, 4000K, 6000K 22400lm A490 X B360 X C95 mm
IDXR2945160 160W LED 3000K, 4000K, 6000K 25600lm A490 X B360 X C95 mm
IDXR2945180 180W LED 3000K, 4000K, 6000K 28800lm A490 X B360 X C95 mm
IDXR2945200
 200W LED 3000K, 4000K, 6000K 32000lm A490 X B360 X C95 mm
