Description: | |
HOUSING |
Die-cast aluminum,AISI 316 stainless steel trim, and screws.
|
DIFFUSER | Tempered Safety Glass |
COLOR AVAILABLE | Black, Stainless-Steel Finish
|
LIFESPAN |
100,000 Hours (L90 B50) |
REFLECTOR | Aluminum Reflector |
VOLTAGE | AC100~240V/DC24V 50-60 HZ |
WORKING TEMPERATURE | -40C° ~ +55C° |
LUMINOUS EFFICACY (lm/W) | 120 |
UGR | <16 |
MacAdam | <3 |
Accessories | Polycarbonate Recessed Box |
Technical Specifications: | |||||

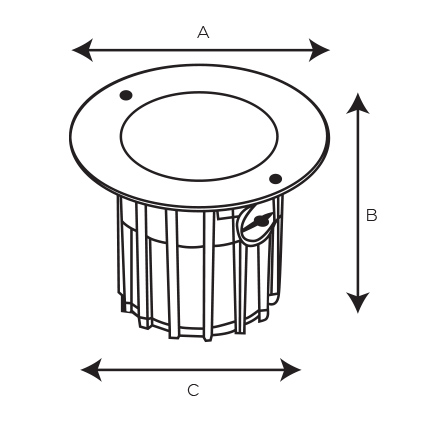

Item Code | Power | Lamp | CCT | Lumen | DIMENSIONS |
---|---|---|---|---|---|
UPXR656505 | 05W | LED | 3000K, 4000K, 6000K | 600lm | A95 X B118 X C85 mm |
UPXR656508 | 08W | LED | 3000K, 4000K, 6000K | 960lm | A95 X B118 X C85 mm |
UPXR656512 | 12W | LED | 3000K, 4000K, 6000K | 1440lm | A160 X B156 X C147 mm |
UPXR656518 | 18W | LED | 3000K, 4000K, 6000K | 2160lm | A180 X B168 X C165 mm |
UPXR656525 | 25W | LED | 3000K, 4000K, 6000K | 3000lm | A210 X B194 X C193 mm |
UPXR656536 | 36W | LED | 3000K, 4000K, 6000K | 4320lm | A250 X B212 X C223 mm |
