| Description: | |
| HOUSING | Pure Aluminum A6063 with corrosion Proof hard anodic oxide coating.
|
| DIFFUSER | Injection Moulded in V2 self-extinguishing polycarbonate, UV-stabilized, clear polycarbonate/opal, and Inside for better light control & high lighting performance. The external smooth finish facilitates cleaning and is essential to maintaining maximum lighting efficiency. |
| COLOR AVAILABLE | White
|
| LIFESPAN |
>50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)
|
| REFLECTOR | Aluminum Reflector |
| VOLTAGE | AC200~240V |
| WORKING TEMPERATURE | -40C° ~ +50C° |
| UGR | <22 |
| LUMINOUS EFFICACY (lm/W) | 150 |
| MacAdam | <3 |
| Technical Specifications: | |||||

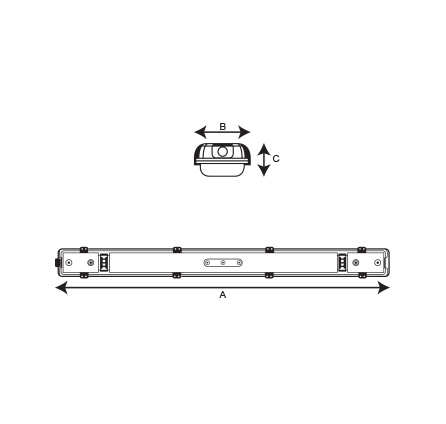

| Item Code | Power | Lamp | CCT | Lumen | DIMENSIONS |
|---|---|---|---|---|---|
| IDXR296520 | 20W | LED | 3000K, 4000K, 6000K | 3000lm | A600 X B90 X C74 mm |
| IDXR296540 | 40W | LED | 3000K, 4000K, 6000K | 6000lm | A1200 X B90 X C74 mm |
| IDXE296560 | 60W | LED | 3000K, 4000K, 6000K | 9000lm | A1200 X B90 X C74 mm |
| IDXE296560 | 60W | LED | 3000K, 4000K, 6000K | 9000lm | A1500 X B90 X C74 mm |
