| Description: | |
| HOUSING |
Die-cast Aluminum.
|
| DIFFUSER | 94-v0 Fire-rated Polycarbonate diffuser. |
| COLOR AVAILABLE |
White and Black
|
| LIFESPAN |
>50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50) |
| REFLECTOR |
Aluminum Reflector |
| VOLTAGE | AC200-240V |
| WORKING TEMPERATURE | -40C° ~ +50C° |
| UGR | <19 |
| LUMINOUS EFFICACY (lm/W) | 120 |
| MacAdam | <3 |
| Technical Specifications: | |||||

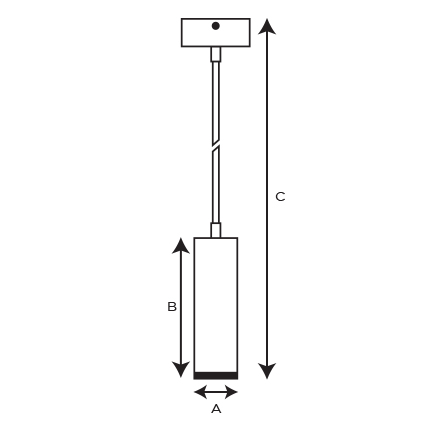

| Item Code | Power | Lamp | CCT | Lumen | DIMENSIONS |
|---|---|---|---|---|---|
| SIXR233510 | 10W | LED | 3000K, 4000K, 6000K | 1200lm | A65 X B157 X C1265 mm |
| SIXR233515 | 15W | LED | 3000K, 4000K, 6000K | 1800lm | A65 X B157 X C1265 mm |
| SIXR233520 |
20W | LED | 3000K, 4000K, 6000K | 2400lm | A85 X B178 X C1285 mm |
| SIXR233525 |
25W | LED | 3000K, 4000K, 6000K | 3000lm | A85 X B178 X C1285 mm |
| SIXR233530 |
30W | LED | 3000K, 4000K, 6000K | 3600lm | A100 X B211 X C1320 mm |
| SIXR233540 |
40W | LED | 3000K, 4000K, 6000K | 4800lm | A100 X B211 X C1320 mm |
