Description: | |
HOUSING |
Die-Cast Aluminum
|
DIFFUSER | Clear or Frosted Polycarbonate Diffuser |
COLOR AVAILABLE |
Black, Grey, & White
|
LIFESPAN |
>50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50) |
REFLECTOR |
Aluminum Reflector |
VOLTAGE | AC100-277V |
WORKING TEMPERATURE | -40C° ~ +50C° |
UGR | <25 |
LUMINOUS EFFICACY (lm/W) | 180 |
MacAdam | <3 |
Available with Aluminum Reflector |
Technical Specifications: | |||||

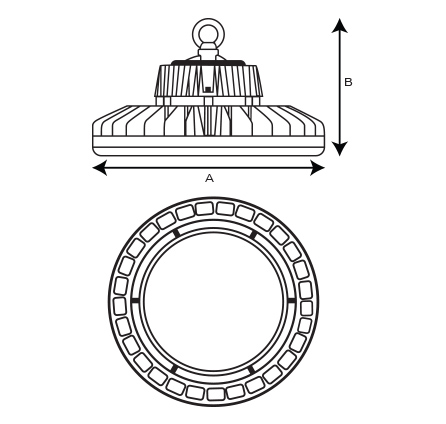

Item Code | Power | Lamp | CCT | Lumen | DIMENSIONS |
---|---|---|---|---|---|
IDXR305050 | 50W | LED | 3000K, 4000K, 6000K | 9000lm | A236 X B169 mm |
IDXR305060 | 60W | LED | 3000K, 4000K, 6000K | 10800lm | A236 X B169 mm |
IDXR305090 |
90W | LED | 3000K, 4000K, 6000K | 16200lm | A236 X B169 mm |
IDXR3050100 | 100W | LED | 3000K, 4000K, 6000K | 18000lm | A236 X B169 mm |
IDXR3050110 | 110W | LED | 3000K, 4000K, 6000K | 19800lm | A289 X B176 mm |
IDXR3050150 |
150W | LED | 3000K, 4000K, 6000K | 27000lm | A325 X B187 mm |
IDXR3050200 | 200W | LED | 3000K, 4000K, 6000K | 36000lm | A325 X B187 mm |
IDXR3050250 | 250W | LED | 3000K, 4000K, 6000K | 45000lm | A325 X B187 mm |
IDXR3050300 |
300W | LED | 3000K, 4000K, 6000K | 54000lm | A380 X B145 mm |
