Description: | |
HOUSING | Luminaire Body of Die-cast Aluminum and Heat Sink form a Compact Unit, White, Powder-coated |
DIFFUSER | Clear Tempered Glass |
COLOR AVAILABLE | White |
LIFESPAN |
>50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50) |
REFLECTOR |
Aluminum reflector |
VOLTAGE | AC220~240V |
WORKING TEMPERATURE | -40C° ~ +50C° |
UGR | <19 |
LUMINOUS EFFICACY (lm/W) | 120 |
MacAdam | <3 |
Technical Specifications: | |||||
Item Code | Power | Lamp | CCT | Lumen | Dimensions |
---|---|---|---|---|---|

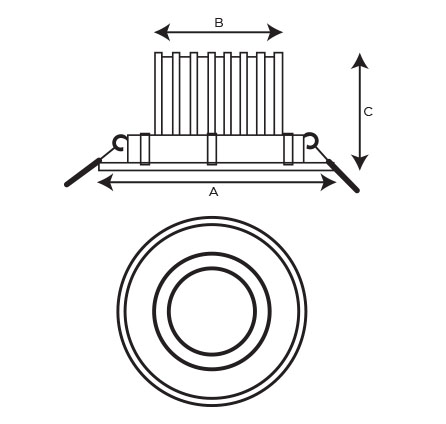

DXR181618 | 18W | LED | 3000K, 4000K, 6000K | 2160lm | A101 X B60 X C85 mm |
DXR181630 | 30W | LED | 3000K, 4000K, 6000K | 3600lm | A140 X B73 X C120 mm |
DXR181640 | 40W | LED | 3000K, 4000K, 6000K | 4800lm | A180 X B94 X C160 mm |
DXR181650 | 50W | LED | 3000K, 4000K, 6000K | 6000lm | A212 X B110 X C195 mm |
