Estes Track Light

Submit an enquiry

FEATURES

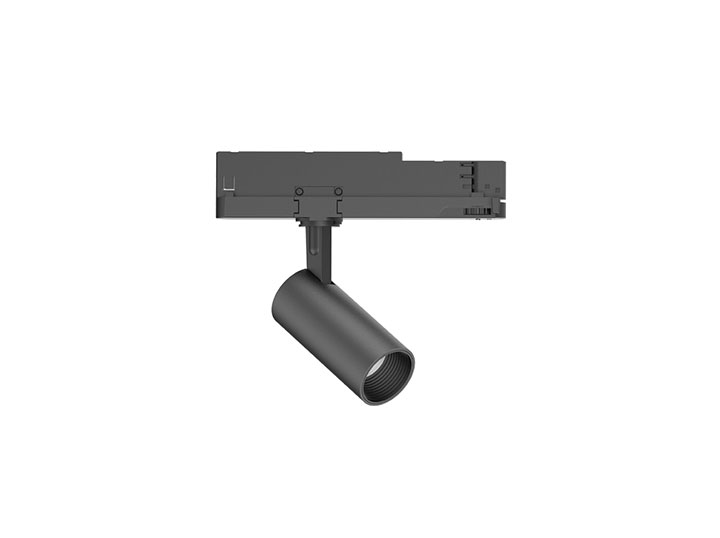

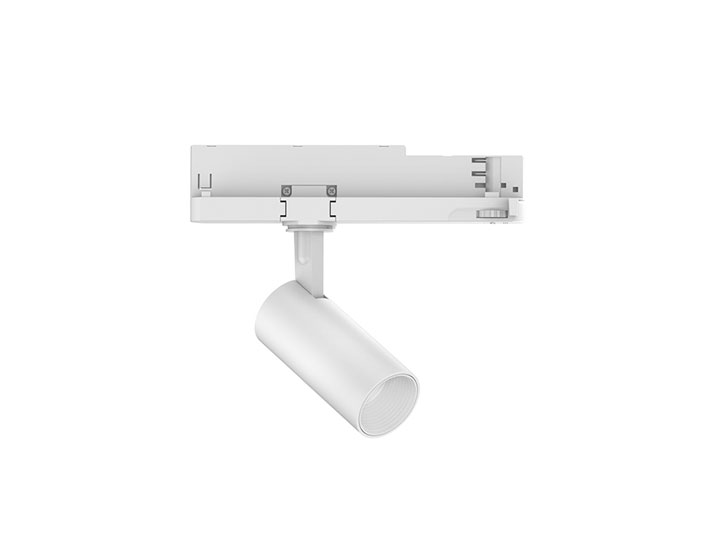

Estes LED track light with simple structure design. Integrate driver and 3 circuits adapter. Adopt Cree LED and lens for accent lighting. ADC12 aluminum light body provides excellent heat dissipation. Adjustable lighting orientation with 350° in horizontal direction and 90° in vertical direction.

ESTES TRACK

Submit an enquiry
Description:
HOUSING
ADC12 Aluminum
DIFFUSER Anti-Glare PC Lens.
COLOR AVAILABLE
White, Black
LIFESPAN
 >50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)
REFLECTOR
 Aluminum Reflector/ PC Lens
VOLTAGE AC200-240V
WORKING TEMPERATURE -40C° ~ +50C°
UGR <22
LUMINOUS EFFICACY (lm/W) 120
MacAdam <3
Technical Specifications:

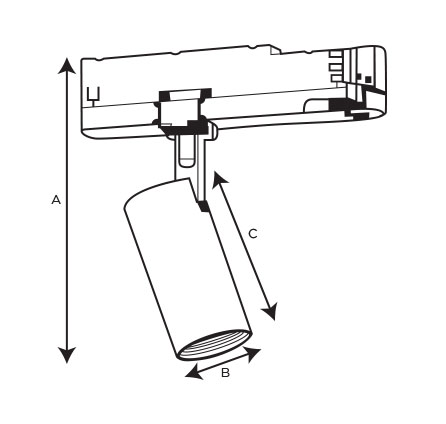

Item Code PowerLamp CCTLumen DIMENSIONS
TRKXR2008 08W LED 3000K, 4000K, 6000K 960lm A196 X B46 X C180 mm
TRKXR2012 12W LED 3000K, 4000K, 6000K 1440lm A196 X B46 X C200 mm
TRKXR2016 16W LED 3000K, 4000K, 6000K 1920lm A196 X B46 X C200 mm
