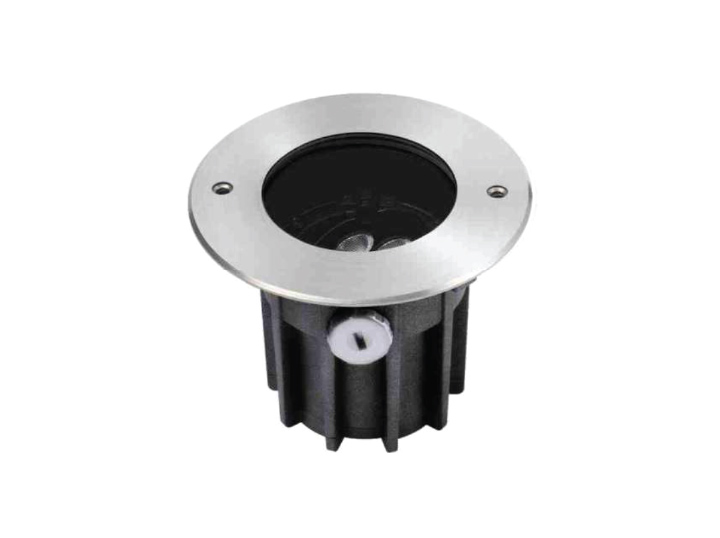

Esme Mini Up Light

FEATURES

Luminaire for floor/ground and ceiling installation, fixed, single adjustable versions for different applications, lighting head can be mechanically adjusted without opening the luminaire, high level of flexibility in terms of lighting control, very low glare rating with the deep recessed lighting head, die-cast aluminum body, 316L SS outer trim, 8mm thick tempered glass, very low thermal build-up at the diffuser end, integrated driver, optional versions available with frosted diffuser and 24Vdc models. The light head is adjustable from -25°~+25°. Highly resistance in marine environment.

ESME MINI

Submit an enquiry
Description:
HOUSING
Die-cast aluminum,AISI 316 stainless steel trim, and screws.
DIFFUSER Tempered Safety Glass
COLOR AVAILABLE Black, Stainless Steel
LIFESPAN
100,000 Hours (L90 B50)
REFLECTOR Special optics PMMA
VOLTAGE AC100~240V/DC24V 50-60 HZ
WORKING TEMPERATURE -40C° ~ +55C°
UGR <16~21
LUMINOUS EFFICACY (lm/W) 110
MacAdam <3
Accessories Polycarbonate Recessed Box
Technical Specifications:

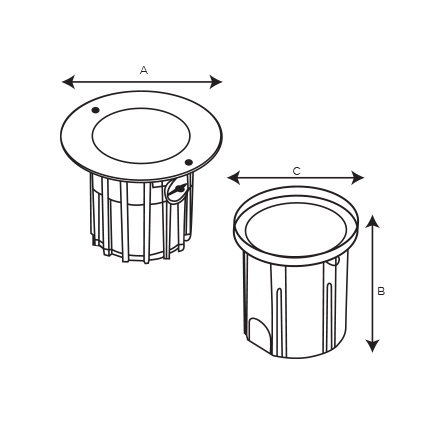

Item Code PowerLamp CCTLumen DIMENSIONS
UPXR657003 03W LED 3000K, 4000K, 6000K 330lm A95 X B118 X C85 mm
UPXR657004 04W LED 3000K, 4000K, 6000K 440lm A95 X B118 X C85 mm
UPXR657005 05W LED 3000K, 4000K, 6000K 550lm A130 X B136 X C119 mm
UPXR657006 06W LED 3000K, 4000K, 6000K 660lm A130 X B136 X C119 mm
