Edlono Panel Lights

Submit an enquiry

FEATURES

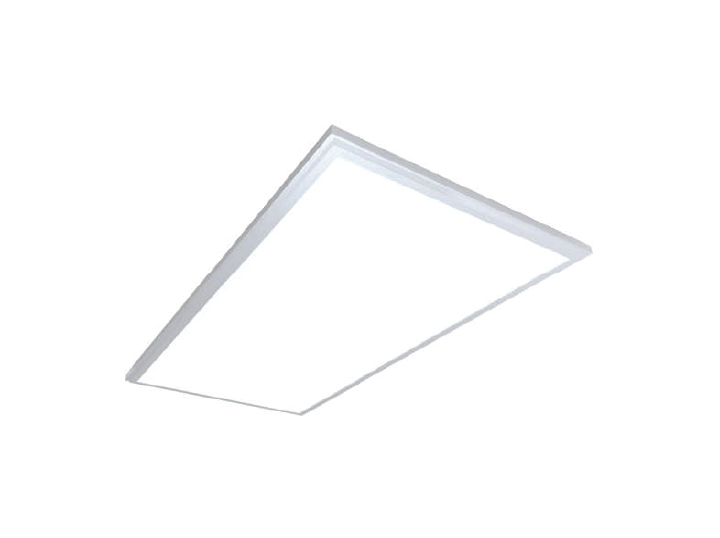

Edlono LED panel light is an elegant high-class indoor lighting. The outer frames are Power CCT Size Lumen made of aluminum alloy by anodic oxidation. Lighting source is LED. The lighting design and simple appearance, deluxe and high-class, with good lighting effect. LED panel lamp design is unique, the light passes through the high transmittance of light guide plate after the formation of a uniform plane light effect, good uniformity of illuminance, light and soft, comfortable and also bright, can effectively relieve eye fatigue.

EDLONO

Submit an enquiry
Description:
HOUSING Aluminum Sheet, Powder Coating, Luminaire Frame made of Extruded Aluminum, Powder-Coated
DIFFUSER Opal PMMA Diffuser UV-Stability, Non-Yellowing Material. Designed for Anti-Glaring.
COLOR AVAILABLE White
LIFESPAN
 >50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)
REFLECTOR
 Aluminum Reflector
VOLTAGE AC220-240V
WORKING TEMPERATURE -40C° ~ +50C°
UGR <19
LUMINOUS EFFICACY (lm/W) 120
MacAdam <3
Accessories Pushing frame, Surface frame, Suspension kit, Clips
Technical Specifications:

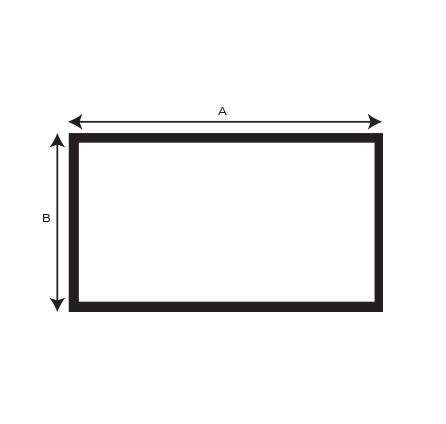

Item Code PowerLamp CCTLumen DIMENSIONS
PXR215020 20W LED 3000K, 4000K, 6000K 2400lm A600 X B300 mm
PXR215025 25W LED 3000K, 4000K, 6000K 3000lm A600 X B300 mm
