EDISON PANEL LIGHT

Submit an enquiry

FEATURES

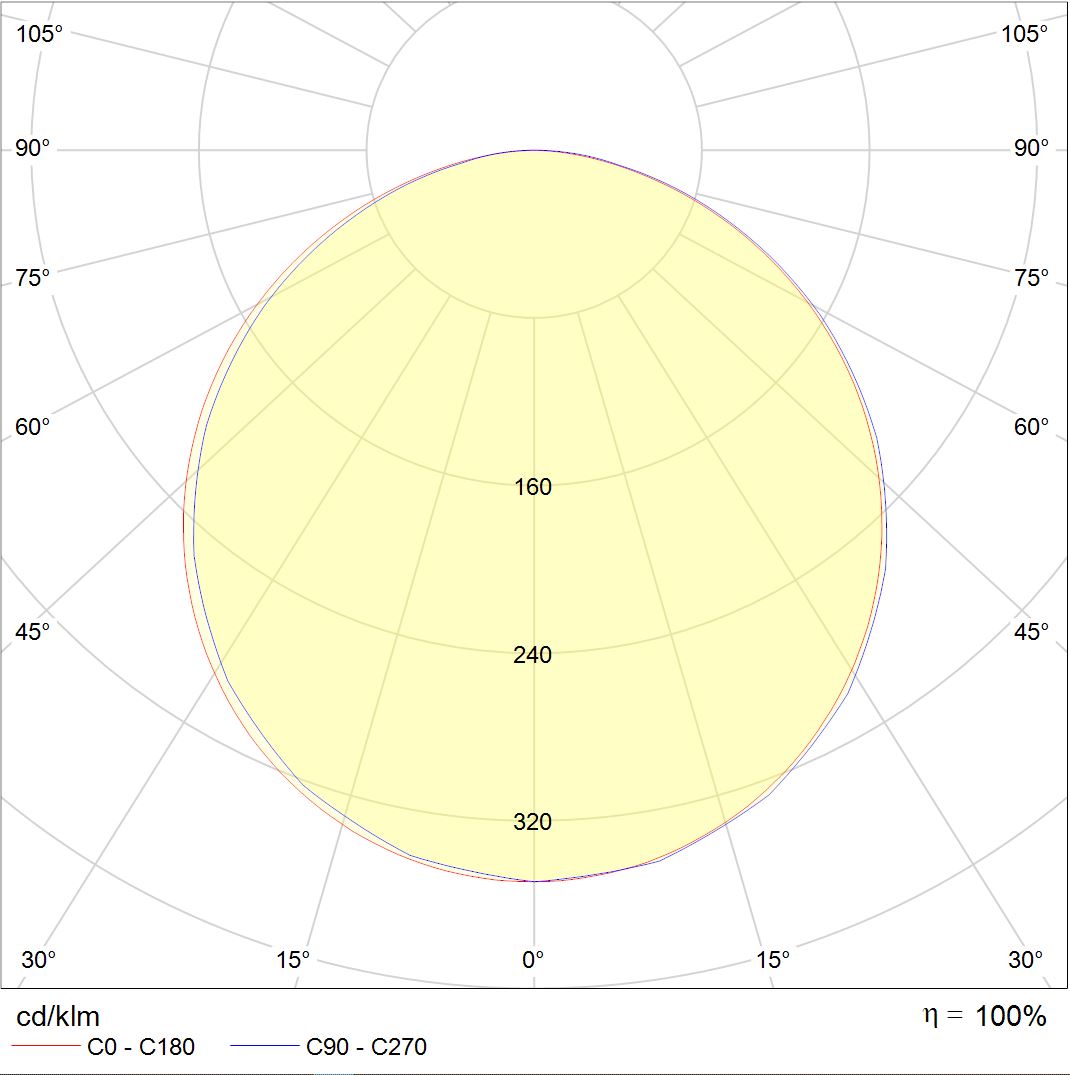

LED panel adopts high lumen SMD LED with up to 80% energy saving compared to standard CFL. Long a lifetime of 50,000 hours. The top branded driver comes with Triac dim, 0-10V dim, and DALI dim, it has a perfect dimming range and shares great compatibility with worldwide famous brand dimmers.120° wide beam angle.

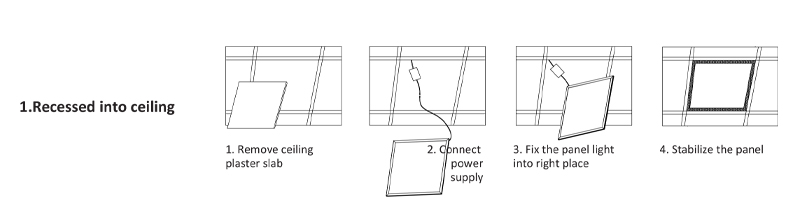

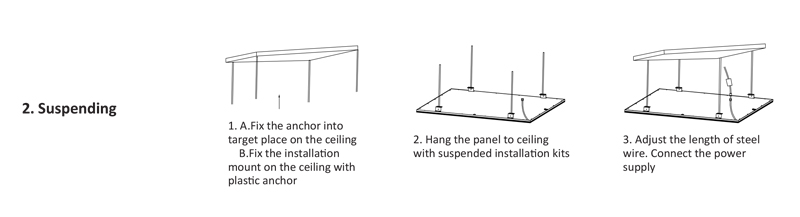

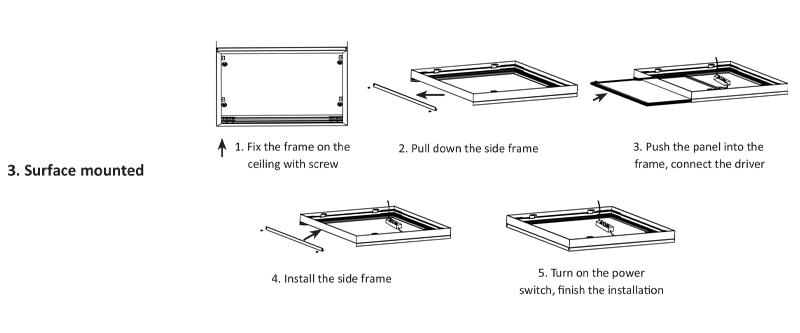

The ultra-slim profile fits seamlessly into any workplace. It is available in various installation ways: embedded into the ceiling, suspended with hanging wires, surface mounted in a concrete ceiling by using a surface mounting frame.

EDISON PANEL LIGHT

Submit an enquiry
Description:
HOUSING
Aluminum Sheet, Powder Coating, Luminaire Frame made of Extruded Aluminum, Powder-Coated
DIFFUSER Opal PMMA Diffuser UV-Stability, Non-Yellowing Material. Designed for anti-glaring.
COLOR AVAILABLE White
LIFESPAN
 >50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)
REFLECTOR
 Aluminum Reflector
VOLTAGE AC220-240V
WORKING TEMPERATURE -40C° ~ +50C°
UGR <19
LUMINOUS EFFICACY (lm/W) 120
MacAdam <3
Accessories Pushing frame, Surface frame, Suspension kit, Clips.
Technical Specifications:

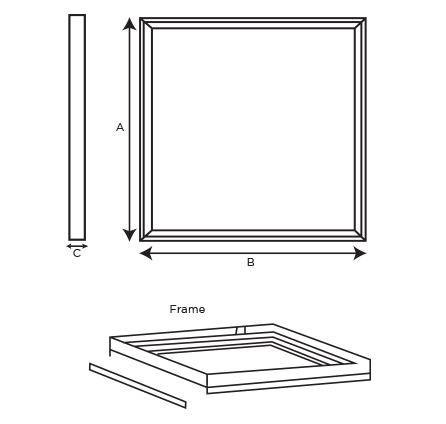

Item Code PowerCCT Lumen Dimensions
PXR211030 30W 3000K, 4000K, 6000K 3600lm A595 X B595 X C8mm
PXR211036 36W 3000K, 4000K, 6000K 4320lm A595 X B595 X C8mm
PXR211040 40W 3000K, 4000K, 6000K 4800lm A595 X B595 X C8mm
PXR211045 45W 3000K, 4000K, 6000K 5400lm A595 X B595 X C8mm
PXR211048 48W 3000K, 4000K, 6000K 5760lm A595 X B595 X C8mm
