DOT I

FEATURES

Dot I LED Spotlight is a mini and exquisite lamp with high light transmittance. it's offers a very little size in many design styles, without forgetting about the functionality: all the range is characterized by the use high quality LED technology, so the result is a choice of accent light suitable for false ceiling, kitchen cabinet and not only. The possible applications are a multitude. The mini spotlights are all environmental friendly and very useful in a matter of energy and economical saving. The light result is bright, uniform and comfortable. Housing made by die cast aluminum powder coated with choice of RAL colors reflector with pure die cast aluminum diffuser – tempered glass.

Description:
HOUSING Die-cast Aluminum
DIFFUSER Tempered Frosted Glass or Clear Tempered Glass
COLOR AVAILABLE Black/White
LIFESPAN
>50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)
REFLECTOR
Aluminum reflector
VOLTAGE AC220~240V
WORKING TEMPERATURE
-40C° ~ +50C°
UGR <16
LUMINOUS EFFICACY (lm/W) 80
MacAdam <3

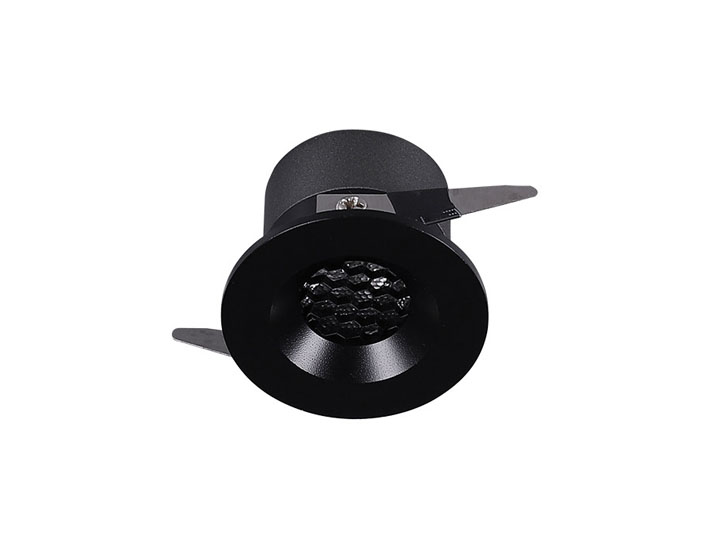

Accessories Available Honeycomb Louver
Technical Specifications:

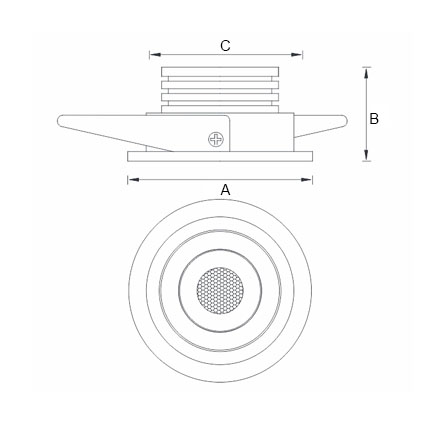

Item Code PowerLamp CCTLumen DIMENSIONS
SXR181302  02W LED 3000K, 4000K, 6000K 160lm A41.5 X B30 X C35 mm
SXR181303 03W LED 3000K, 4000K, 6000K 240lm A41.5 X B30 X C35 mm
SXR181305
05W LED 3000K, 4000K, 6000K 400lm A49.6 X B28.4 X C42 mm
