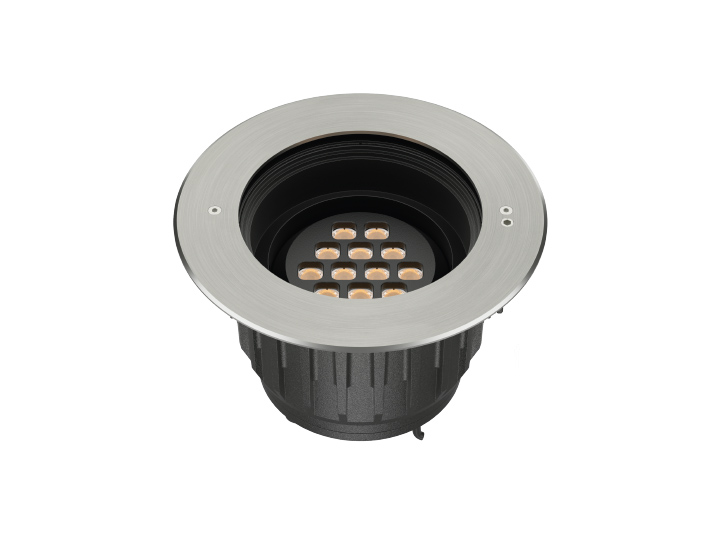

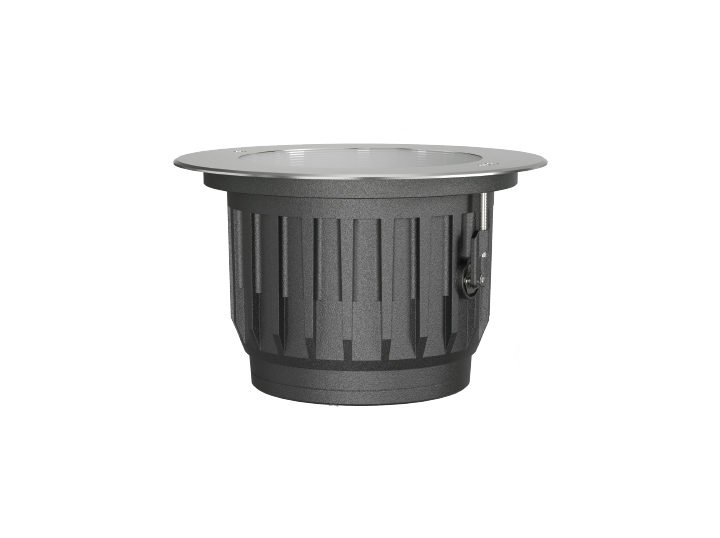

Darco Up Light

FEATURES

Draco Luminaire for floor/ground and ceiling installation, fixed, single adjustable versions for different applications, lighting head can be mechanically adjusted without opening the luminaire, high level of flexibility in terms of lighting control, very low glare rating with the deep recessed lighting head, die-cast aluminum body, 316L SS outer trim, 8mm thick tempered glass, very low thermal build-up at the diffuser end, integrated driver, optional versions available with frosted diffuser and 24Vdc models. The light head is adjustable from -25°~+25°. Highly resistance in marine environment.

Description:
HOUSING
Die-cast aluminum, AISI 316 stainless steel trim, and screws.
DIFFUSER Tempered Safety Glass
COLOR AVAILABLE Black, Light Grey, and Stainless Steel
LIFESPAN
100,000 Hours (L90 B50)
REFLECTOR Special optics: PMMA
VOLTAGE AC100~240V/DC24V 50-60 HZ
WORKING TEMPERATURE -40C° ~ +55C°
UGR <16~21
LUMINOUS EFFICACY (lm/W) 120
MacAdam <3
Accessories Polycarbonate Recessed Box
Technical Specifications:

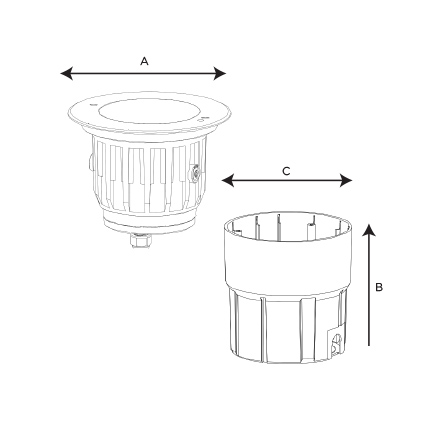

Item Code PowerLamp CCTLumen DIMENSIONS
UPXR656812 12W LED 3000K, 4000K, 6000K 1440lm A170 X B165 X C150 mm
UPXR656818 18W LED 3000K, 4000K, 6000K 2160lm A170 X B165 X C150 mm
UPXR656824 24W LED 3000K, 4000K, 6000K 2880lm A210 X B190 X C178 mm
UPXR656836 36W LED 3000K, 4000K, 6000K 4320lm A260 X B190 X C228 mm
UPXR656850 50W LED 3000K, 4000K, 6000K 6000lm A300 X B220 X C270 mm
UPXR656870 70W LED 3000K, 4000K, 6000K 8400lm A350 X B230 X C320 mm
