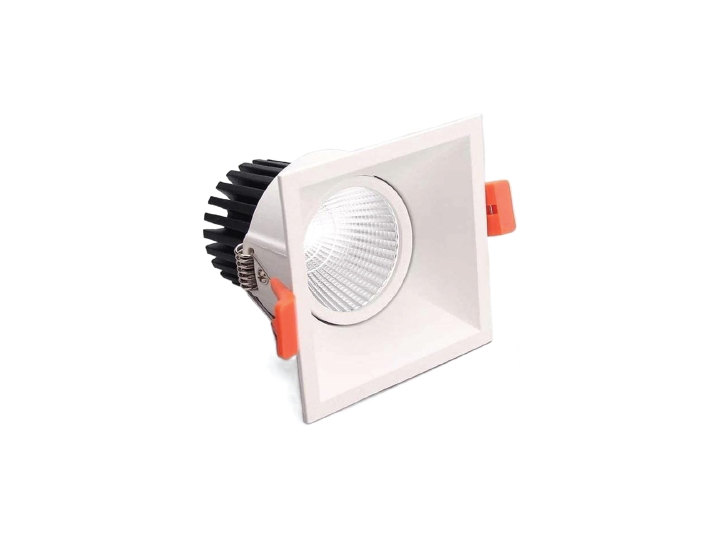

Cooper Down Light

Features

Cooper LED Down Light is recessed ceiling-mounted downlights with symmetrical light distribution to achieve an effective accent, task or general lighting. Flush installation, the fixture is completely fitted in the ceiling void. Installation in plasterboard ceilings. Circular design available in 4 diameters, powder painted die-cast aluminium trim available in white, silver, chrome surface treatment for different application. High-purity aluminium reflector in assorted finishes: specular anodised, facetted metalized or sandblasted anodised depending on the beam angle outcome.
Description:
HOUSING
Luminaire Body of die-cast aluminum, white, powder-coated. Luminaire body and Heat Sink form a Compact Unit
DIFFUSER
Opal PMMA Diffuser; Anti-glare
COLOR AVAILABLE White
LIFESPAN
50,000 Hours (L90 B10)
REFLECTOR Polycarbonate
VOLTAGE
AC220~240V
WORKING TEMPERATURE -20C° ~ +55C
UGR <19
LUMINOUS EFFICACY (lm/W) 100
MacAdam <3
Technical Specifications:

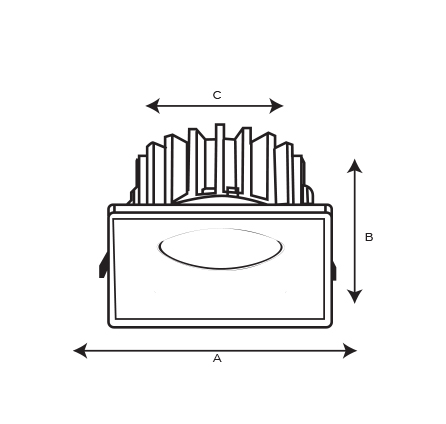

Item Code PowerLamp CCTLumen DIMENSIONS
DXR179907
07W LED 3000K, 4000K, 6000K 700lm A85 X B85 X C70 mm
DXR179910 10W LED 3000K, 4000K, 6000K 1000lm A85 X B85 X C70 mm
DXR179912
12W LED 3000K, 4000K, 6000K 1200lm A85 X B85 X C70 mm
