CLEAN ROOM PANEL LIGHT

FEATURES

Clean Room LED backlit is an anti-bacterial, Clean room compatibility. The top-branded driver comes with Triac dim, 0-10V dim, and DALI dim; it has a perfect dimming range and shares great compatibility with worldwide famous brand dimmers. It fits seamlessly into any workplace. It is available in various installation ways: embedded into the ceiling, suspended with hanging wires, surface mounted on a concrete ceiling by using a surface mounting frame. Side brackets are adjustable to the ceiling #22: 80mm thickness. It is easy to maintain and repair core parts. Easy to clean. Resistant to corrosion, cleaning agents, and disinfectants. Strong structures can operate in rooms with positive pressure and in rooms with negative pressure. Applicable for hospitals, health care centers, laboratory, food factory, research centers, etc.

CLEANROOM

Submit an enquiry
Description:
HOUSING
Aluminum Sheet, Powder Coating, Luminaire Frame made of Extruded Aluminum
DIFFUSER
PMMA/PC/PS Tempered glass Diffuser UV-Stability, Non Yellowing Material.
COLOR AVAILABLE White
LIFESPAN
>50,000 Hours (L80 B10)
REFLECTOR
Aluminum Reflector
VOLTAGE AC200~240V
WORKING TEMPERATURE -20C° ~ +50C°
UGR <19
LUMINOUS EFFICACY (lm/W) 120
MacAdam <3
Anti-Bacteria
Technical Specifications:

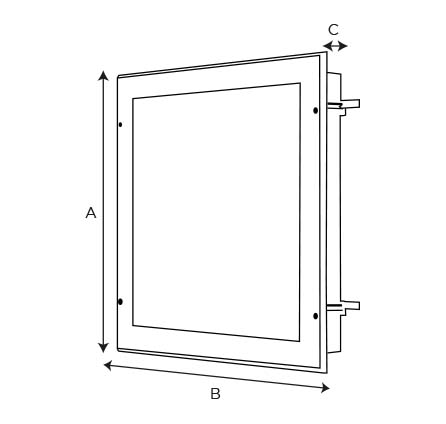

Item Code PowerLamp CCTLumen DIMENSIONS
PXR211430-A 30W LED 3000K, 4000K, 6000K 3600lm A595 X B595 X C92.5 mm
PXR211436-A
36W LED 3000K, 4000K, 6000K 4320lm A595 X B595 X C92.5 mm
PXR211440-A 40W LED 3000K, 4000K, 6000K 4800lm A595 X B595 X C92.5 mm
PXR211430-B 30W LED 3000K, 4000K, 6000K 3600lm A295 X B1195 X C92.5 mm
PXR211436-B36W LED 3000K, 4000K, 6000K 4320lm A295 X B1195 X C92.5 mm
PXR211440-B 40W LED 3000K, 4000K, 6000K 4800lm A295 X B1195 X C92.5 mm
