FEATURES

Brody Track Light is a high-end track light with professional optic design. It adopts COB light source; special deep reflector design achieves anti-glare effect. Besides, module design provides an easily replacement with different optic part. (Two different optic part optional: reflector + tempered glass with circle lighting spot, reflector + special PC lens with oval lighting spot.) Compact appearance with small & big power, it can be rotated horizontally 358 degrees, vertically 180 degrees. Besides, it is a big power track light design, which meets a high brightness demand.

BRODY TRACK

Submit an enquiry
>50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)
Description:
HOUSING
Made of die-cast Aluminum with thermoplastic Material
DIFFUSER Anti-Glare Tempered Glass/PC Lens, Specially for LED
COLOR AVAILABLE
White, Black
LIFESPAN>50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)
REFLECTOR
 Aluminum Reflector/PC Lens
VOLTAGE AC200-240V
WORKING TEMPERATURE -40C° ~ +50C°
UGR <22
LUMINOUS EFFICACY (lm/W) 120
MacAdam <3
AdjustabilityDirectional (350° in Horizontal direction & 90° in Vertical direction)
Technical Specifications:

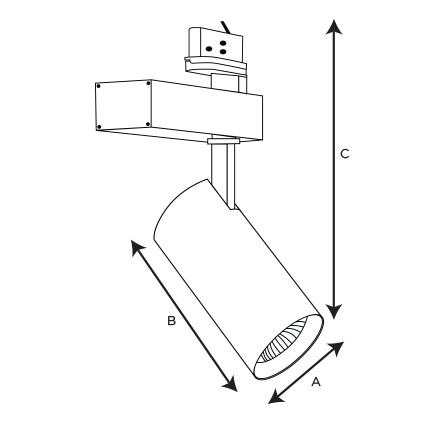

Item Code PowerLamp CCTLumen DIMENSIONS
TRKXR1015 15W LED 3000K, 4000K, 6000K 1800lm A70 X B162 X C190 mm
TRKXR1020 20W LED 3000K, 4000K, 6000K 2400lm A70 X B162 X C190 mm
TRKXR1030 30W LED 3000K, 4000K, 6000K 3600lm A80 X B162 X C190 mm
TRKXR1040 40W LED 3000K, 4000K, 6000K 4800lm A92 X B162 X C190 mm
