FEATURES

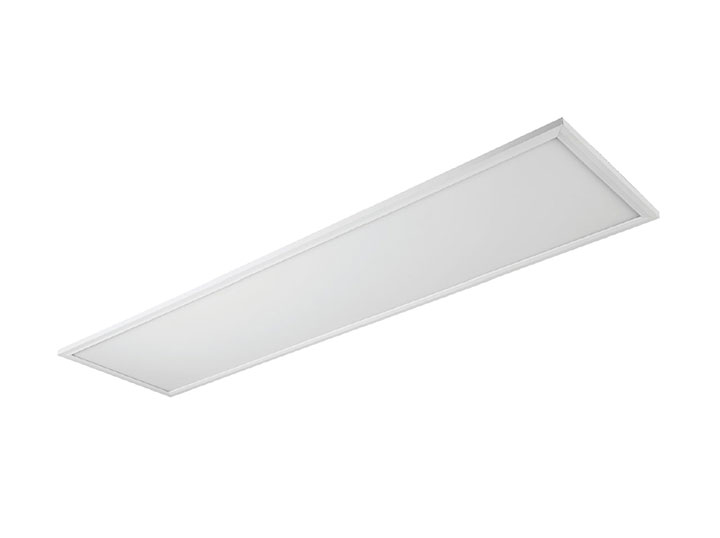

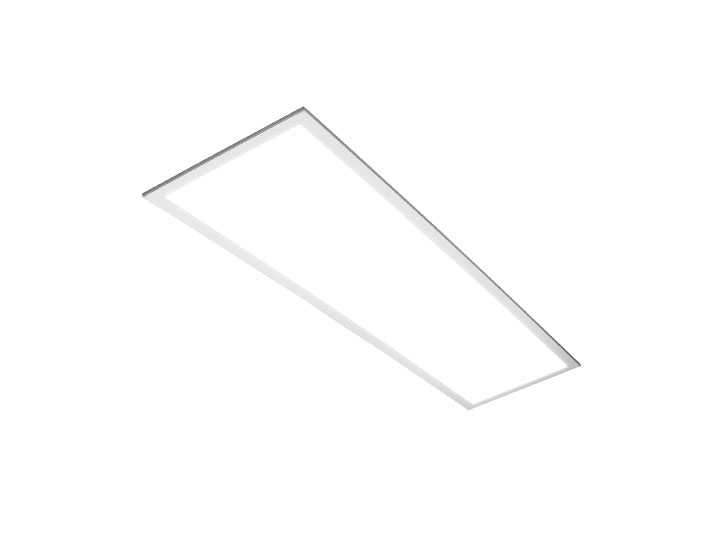

Bako LED panel specifically engineered for environments requiring high hygiene standards. this LED panel also complies with stringent safety and hygiene regulations. adopts high lumen. SMD LED with up to 80% energy saving compared to standard CFL. Long a lifetime of 50,000 hours. The top branded driver comes with Triac dim, 0-10V dim, and DALI dim, it has a perfect dimming range and shares great compatibility with worldwide famous brand dimmers.120° wide beam angle. The ultra-slim profile fits seamlessly into any workplace. It is available in various installation ways: embedded into the ceiling, suspended with hanging wires, surface mounted in a concrete ceiling by using a surface mounting frame.

BAKO

Submit an enquiry
Description:
HOUSING Aluminum Sheet, Powder Coating, Luminaire Frame made of Extruded Aluminum, Powder-Coated
DIFFUSER Opal PMMA Diffuser UV-Stability, Non-Yellowing Material. Designed for Anti-Glaring.
COLOR AVAILABLE White
LIFESPAN
 >50,000 Hours (L80 B10)
REFLECTOR
 Aluminum Reflector
VOLTAGE AC220-240V
WORKING TEMPERATURE -20C° ~ +50C°
UGR <19
LUMINOUS EFFICACY (lm/W) 100
MacAdam <3
Accessories Pushing frame, Surface frame Suspension kit, Clips
Technical Specifications:

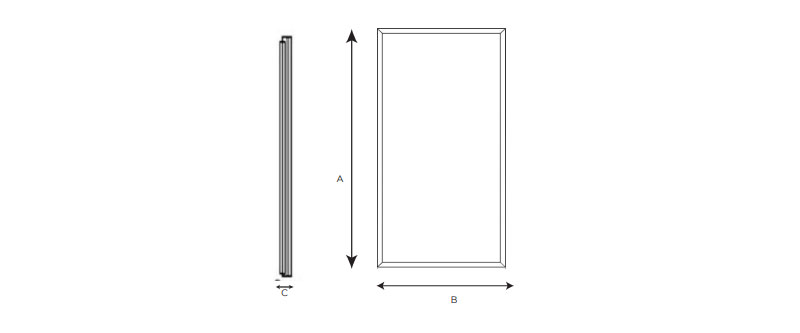

Item Code PowerLamp Lumen DIMENSIONS
PXR211140 40W LED 4000lm A1195 x B595 x C10mm
PXR211150 50W LED 5000lm A1195 x B595 x C10mm
PXR211155 55W LED 5500lm A1195 x B595 x C10mm
PXR211160 60W LED 6000lm A1195 x B595 x C10mm
PXR211170 70W LED 7000lm A1195 x B595 x C10mm
PXR211180 80W LED 8000lm A1195 x B595 X C10mm
PXR211190 90W LED 9000lm A1195 x B595 x C10mm
PXR211196 96W LED 9600lm A1195 x B595 X C10mm
