FEATURES

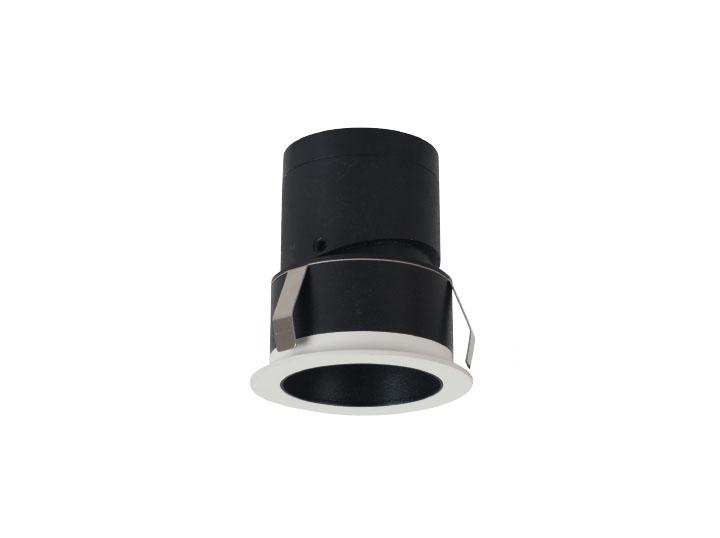

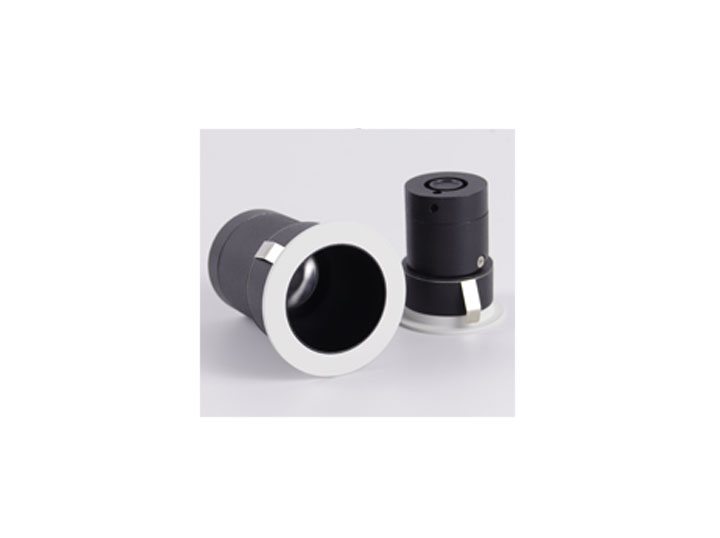

Athena LED Down Light is an attractive exclusive downlight for indoor use, particularly well suited to basic lighting due to its very low unified glare rating. The light efficiency reach up to 120lm/w with perfect accent lighting performance. That makes it become the priority selected product for commercial lighting. Great cooling fins heat sink design increases the interface between heat sink and air, which makes the heat dissipating performance outstanding and extend the service life of the downlight. Suitable for commercial and residential applications like office, supermarket, shop, school, hotel, restaurant, workshop, etc.

ATHENA

Submit an enquiry
Description:
HOUSING  Hard Die-cast Aluminum Body, White, Powder-coated
DIFFUSER Tempered Frosted Glass
COLOR AVAILABLE White/Black or White and Black
LIFESPAN
 >50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)
REFLECTOR
 Aluminum reflector
VOLTAGEAC100~240V/50-60 HZ tª
WORKING TEMPERATURE
 -40C° ~ +50C°
UGR < 19
LUMINOUS EFFICACY (lm/W) 120
MacAdam <3
Technical Specifications:

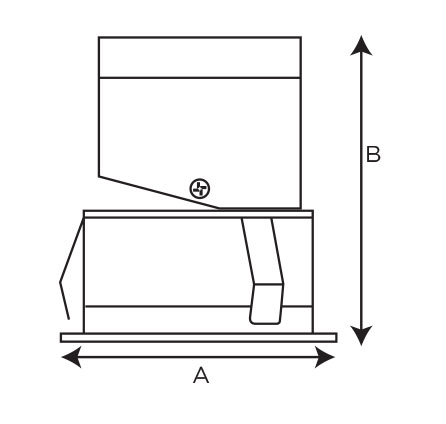

Item Code PowerLamp CCTLumen DIMENSIONS
SXR186503 03W LED 3000K, 4000K, 6000K 360lm A40 X B41 mm
SXR186506
 06W LED 3000K, 4000K, 6000K 720lm A45 X B54 mm
SXR186508 - A
 08W LED 3000K, 4000K, 6000K 960lm A45 X B54 mm
SXR186508 - B
 08W LED 3000K, 4000K, 6000K 960lm A57 X B71 mm
SXR186508 - C
 08W LED 3000K, 4000K, 6000K 960lm A68 X B87 mm
SXR186510 - B10W LED 3000K, 4000K, 6000K 1200lm A57 X B71 mm
SXR186510 - C
 10W LED 3000K, 4000K, 6000K 1200lm A68 X B87 mm
