ALOK LED Down Light

Submit an enquiry

FEATURES

Attractive adjustable multiple downlights for prestigious lighting of offices, banks, hotels, restaurants, corridors, foyers, sales, exhibition and conference rooms, as well as residential areas. It is well integrated LED chip and dimmable Phase cut-off or DALI driver.

ALOK

Submit an enquiry
Description:
HOUSING
Luminaire Body of die-cast Aluminum, White, powder-coated. Luminaire body and Heat Sink form a Compact Unit
DIFFUSER Clear tempered glass
COLOR AVAILABLE White
LIFESPAN
 >50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)
REFLECTOR
 Aluminum Reflector
VOLTAGE AC100-240V
WORKING TEMPERATURE -40C° ~ +50C°
UGR <22
LUMINOUS EFFICACY (lm/W) 120
MacAdam <3
Technical Specifications:

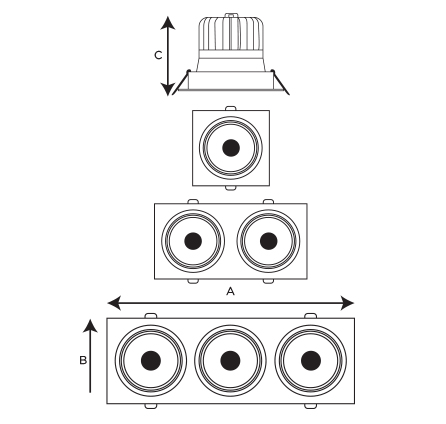

Item Code PowerLamp CCTLumen DIMENSIONS
GDXR2050107 1X07W LED 3000K, 4000K, 6000K 840lm A115 X B115 X C100 mm
GDXR2050110 1X10W LED 3000K, 4000K, 6000K 1200lm A115 X B115 X C100 mm
GDXR2050115 1X15W LED 3000K, 4000K, 6000K 1800lm A115 X B115 X C100 mm
GDXR2050210
 2X10W LED 3000K, 4000K, 6000K 2400lm A230 X B115 X C100 mm
GDXR2050215
 2X15W LED 3000K, 4000K, 6000K 3600lm A230 X B115 X C100 mm
GDXR2045310
 3X10W LED 3000K, 4000K, 6000K 3600lm A285 X B115 X C100 mm
GDXR2045315
 3X15W LED 3000K, 4000K, 6000K 5400lm A285 X B115 X C100 mm
